Schmalz part

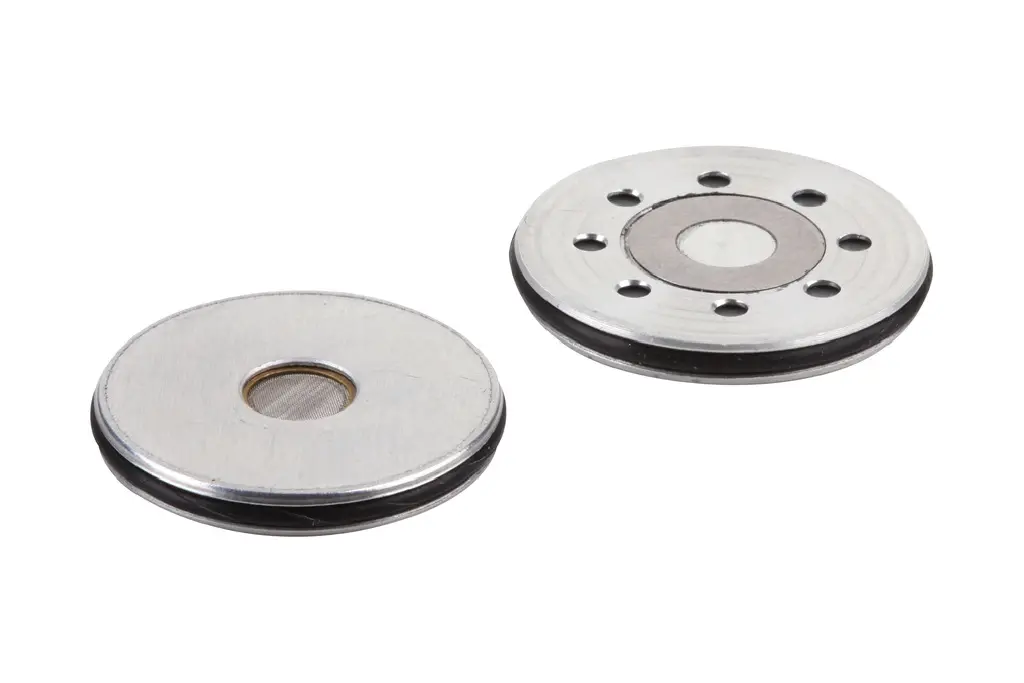

VCMV 3 25
Part no.: 10.01.15.00133
Magnetically actuated valve for Schmalz clamping systems
Price
$59.68
excl. VAT, shipping & packagingSpecifications
| Outside diameter D | 25 (mm) |
|---|---|
| Internal diameter d | 7 (mm) |
| Height H | 3 (mm) |
Product family
Accessories and spare parts ISMST, ISRPL, ISDR, DI-PROF, ISZR-V, VCMV, SIEB, TV
| Height H | 3 – 65 mm |
|---|---|
| Outside diameter D | 7 – 80 mm |
| Length L | 1 – 167 mm |
| Width B | 4 – 167 mm |
| Internal diameter d | 5 – 60.5 mm |
| Head diameter Dk | 7.5 – 19 mm |
| Weight | 0.002 – 0.03 kg |
| Length L1 | 18.5 – 30.1 mm |
| Spring stroke Z | 4.3 mm |
