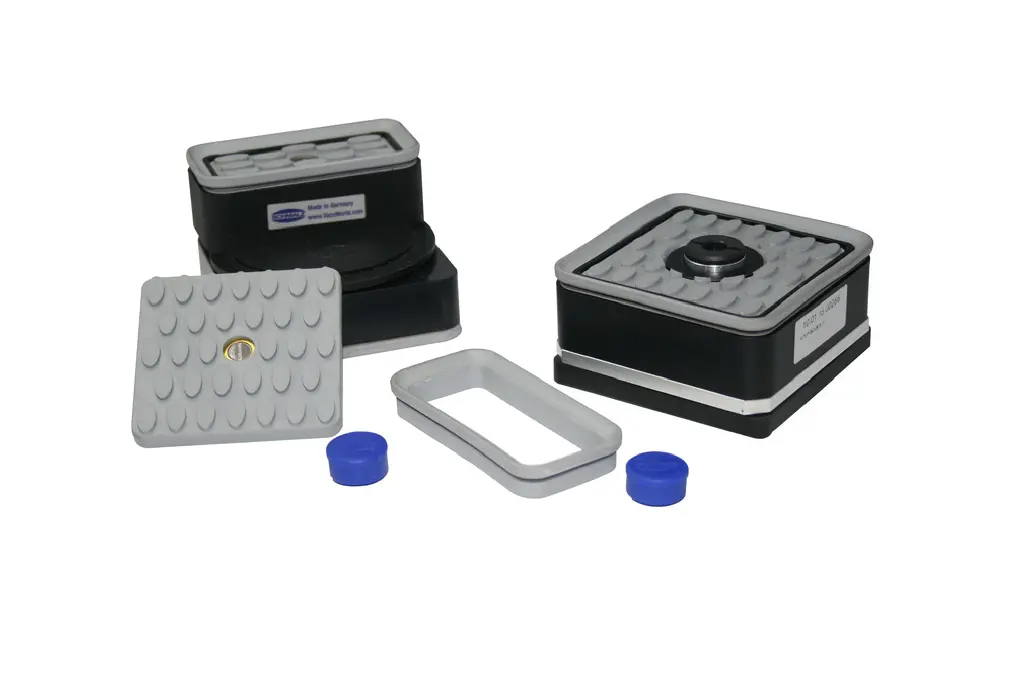

Accessories and Spare Parts Innospann
Manufacturer: Schmalz (J. Schmalz GmbH)
Clamping Equipment for Grid Table Systems
Accessories and spare parts ISMST, ISRPL, ISDR, DI-PROF, ISZR-V, VCMV, SIEB, TV
Price: Price $2.64-$113.50 (32 priced variants; 6 in stock)
Specifications
- Height H
- 3 – 65 mm
- Outside diameter D
- 7 – 80 mm
- Length L
- 1 – 167 mm
- Width B
- 4 – 167 mm
- Internal diameter d
- 5 – 60.5 mm
- Head diameter Dk
- 7.5 – 19 mm
- Weight
- 0.002 – 0.03 kg
- Length L1
- 18.5 – 30.1 mm
- Spring stroke Z
- 4.3 mm
