Schmalz part

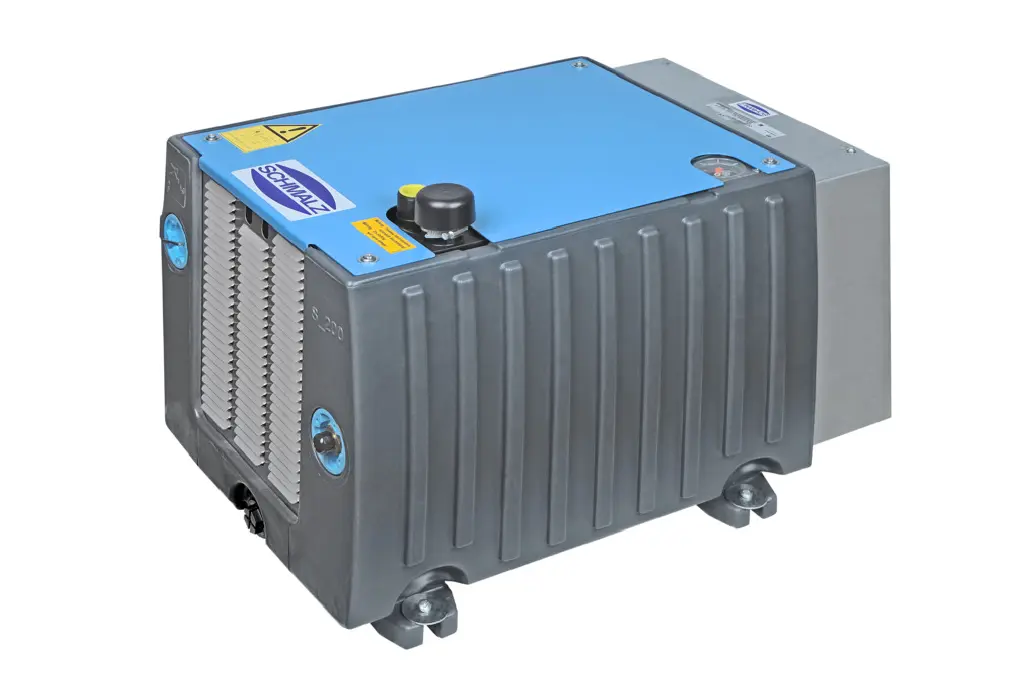

EVE-WR 45 AC3
Part no.: 10.03.05.00015
Water-ring pump, wear-free, robust, requires little maintenance
Price
$15,810.56
excl. VAT, shipping & packagingSpecifications
| Suction rate (50 Hz) | 45 (m³/h) |
|---|---|
| Current type | Three phase A.C. |
| Sound pressure level at 50 Hz | 67 (dB(A)) |
| Voltage at 50 Hz | 200 - 240 V or 345 - 420 V |
| Rated power at 50 Hz | 1.2 (kW) |
| Rated power at 60 Hz | 1.2 (kW) |
| Weight | 55 (kg) |
Product family
Suction rate from 25 m³/h to 65 m³/h
| Width B | 432 – 572 mm |
|---|---|
| Internal diameter d | 14 mm |
| Outside diameter D2 | 30 – 50 mm |
| Height H | 390 – 436 mm |
| Height H1 | 486 – 553 mm |
| Length L | 602 – 764 mm |
| Length L2 | 85 mm |
| Hole spacing X1 | 345 – 450 mm |
| Hole spacing Y1 | 370 – 495 mm |
