Schmalz part

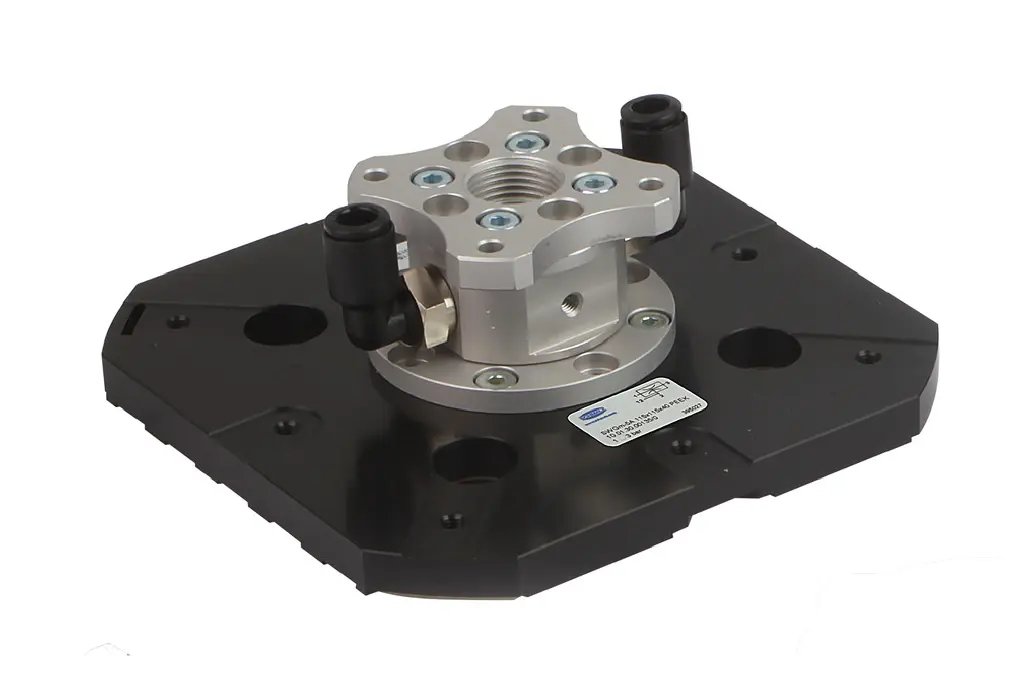

SWGm-5A 115x115x40 1xE100 A PEEK
Part no.: 10.01.30.00135
Wafer gripper for fast and careful handling of photovoltaic components
Price
$1,872.17
excl. VAT, shipping & packagingSpecifications
| Shape | Axial exhaust air |
|---|---|
| Length L | 115 (mm) |
| Width B | 115 (mm) |
| Height H | 40 (mm) |
| Number of ejectors | 1 |
| Performance class | E100 |
| Shape compact ejectors | Blow-off function |
| Material | Polyetheretherketon |
Product family
Wafer grippers are suitable for extremely quick and reliable handling of wafers and solar cells. The generation of a high flow rate with low air consumption enables particularly gentle handling of sensitive workpieces.
| Width B | 110 – 141 mm |
|---|---|
| d2 | 16 mm |
| Height H | 3 mm |
| Length L | 110 – 141 mm |
| Hole spacing X2 | 80.6 – 110.6 mm |
| Suction cup material | Polyetheretherketone PEEK |
| Weight | 36.5 – 63.3 g |
