Schmalz part

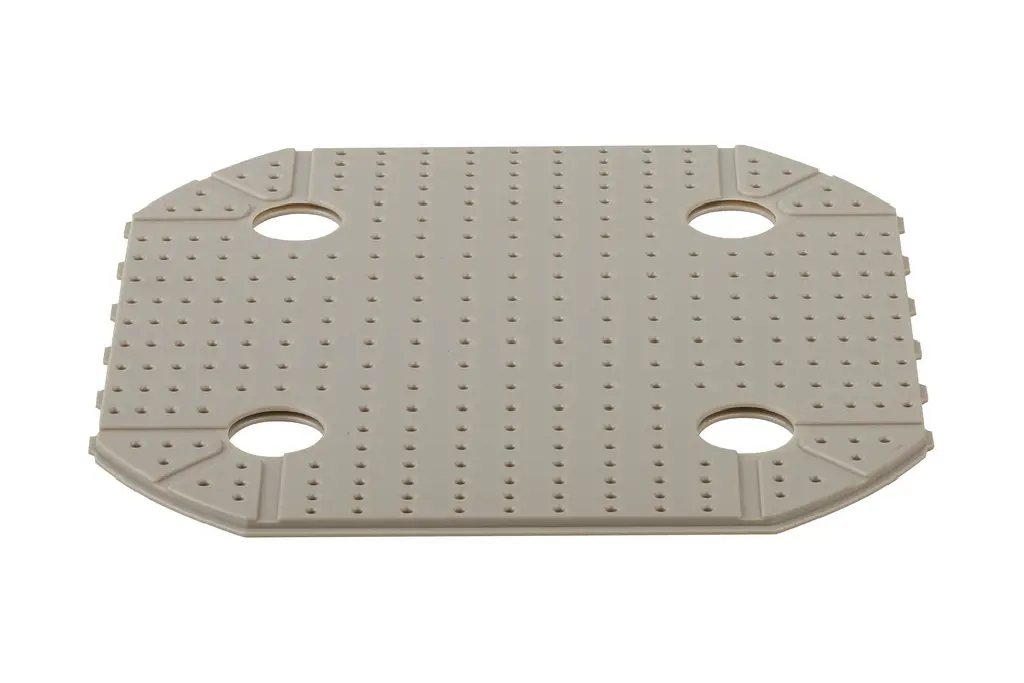

SAUG-FL SWGm-5 110x110 PEEK
Part no.: 10.01.30.00125
Suction plate
Price
$753.68
excl. VAT, shipping & packagingSpecifications
| Length L | 110 (mm) |
|---|---|
| Width B | 110 (mm) |
| Height H | 3 (mm) |
| Suction cup material | Polyetheretherketone PEEK |
| Utilization design | Wafer gripper |
Product family
Wafer grippers are suitable for extremely quick and reliable handling of wafers and solar cells. The generation of a high flow rate with low air consumption enables particularly gentle handling of sensitive workpieces.
| Width B | 110 – 141 mm |
|---|---|
| d2 | 16 mm |
| Height H | 3 mm |
| Length L | 110 – 141 mm |
| Hole spacing X2 | 80.6 – 110.6 mm |
| Suction cup material | Polyetheretherketone PEEK |
| Weight | 36.5 – 63.3 g |
