Schmalz part
VOL 5
Part no.: 10.03.03.00108

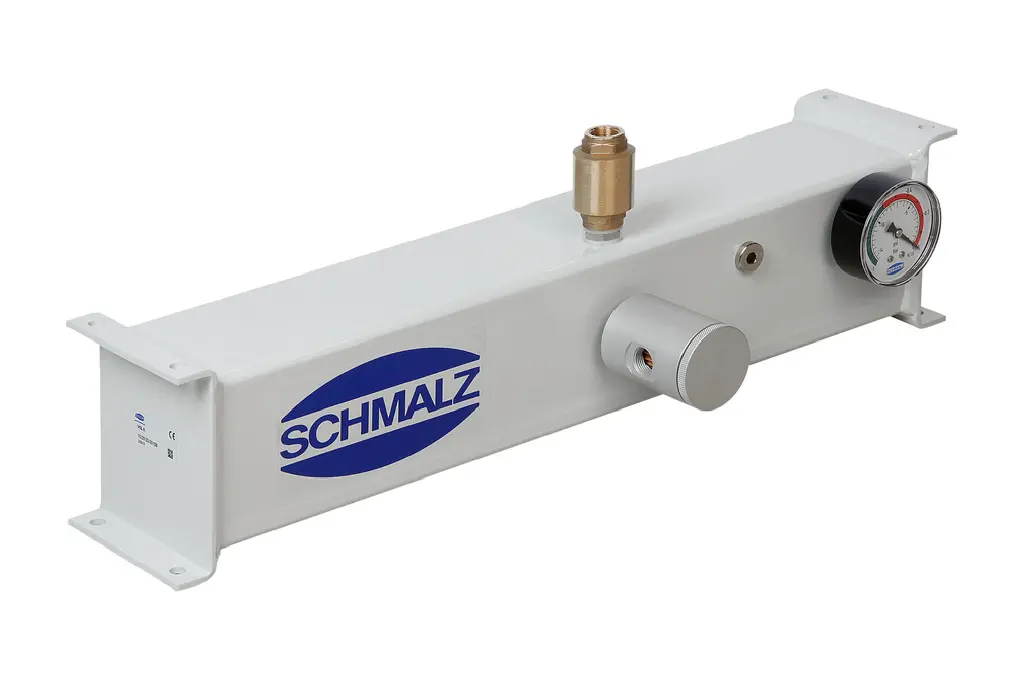

Vacuum reservoir
Price
$1,365.26
excl. VAT, shipping & packagingSpecifications
| Reservoir volume | 5 (l) |
|---|---|
| Height H | 120 (mm) |
| Additional function vacuum reservoir | Gauge, non-return valve, filter |
Product family
Reservoir volume from 5 l to 200 l
| Width B | 110 – 710 mm |
|---|---|
| Width B1 | 185 – 1015 mm |
| Internal diameter d | 9 – 11 mm |
| Thread G1 | G3/4"-F, G1/2"-F, G3/8"-F, G2"-F, G1-1/4"-F |
| Thread G2 | G1-1/4"-F, G3/4"-F, G3/8"-F, G2-1/2"-F |
| Height H | 120 – 434 mm |
| Height H1 | 180 – 495 mm |
| Length L | 430 – 910 mm |
| Hole spacing X1 | 280 – 592 mm |
