Schmalz part

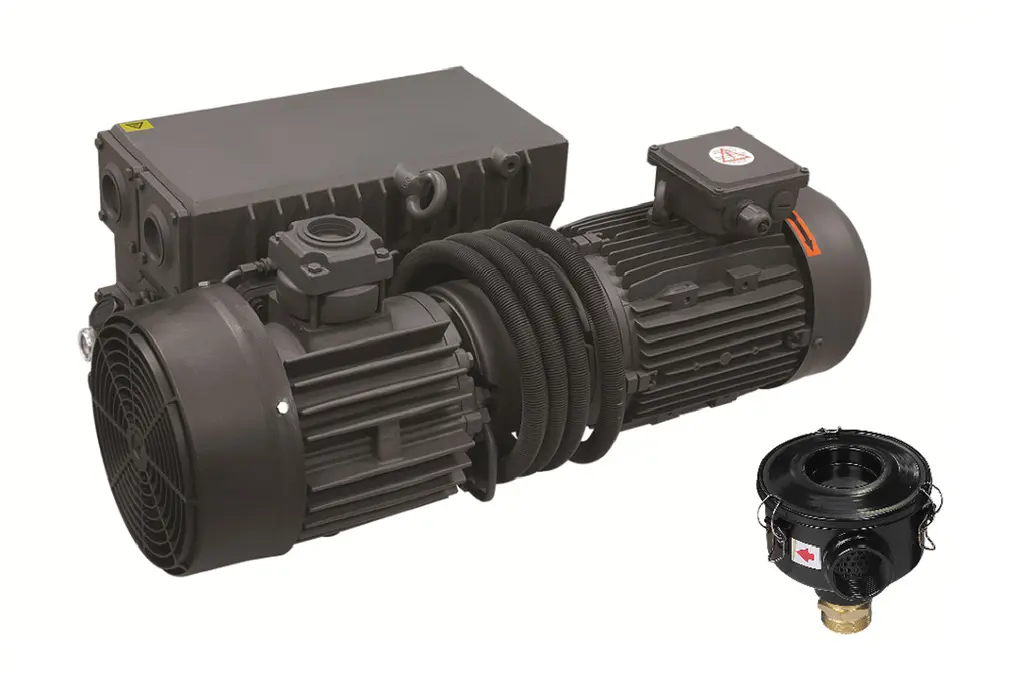

EVE-OG 100 AC3 F
Part no.: 10.03.02.00033
Oil-lubricated pump for maximum vacuum levels, requires little maintenance
Price
Price on request
excl. VAT, shipping & packagingSpecifications
| Current type | Three phase A.C. |
|---|---|
| Sound pressure level at 50 Hz | 67 (dB(A)) |
| with | Filter |
| Suction rate (50 Hz) | 100 (m³/h) |
| Rated power at 50 Hz | 2.2 (kW) |
| Voltage at 50 Hz | 200 - 240 V or 345 - 420 V |
| Weight | 70 (kg) |
Product family
For high vacuum values with a low volume flow. Oil-lubricated pumps, dry-running pumps and water-ring pumps are available.
| Outside diameter D | 23 – 58 mm |
|---|---|
| Thread G1 | G3/8"-M, G1"-M, G1-1/4"-M, G1/4"-F, G1/4"-M |
| Thread length LG1 | 8 – 15 mm |
| Length L | 34 – 72 mm |
| Weight | 38.7 – 352 g |
| Size | 4-8, 10-40, 60-140 |
| Max. vacuum | -950 – -850 mbar |
