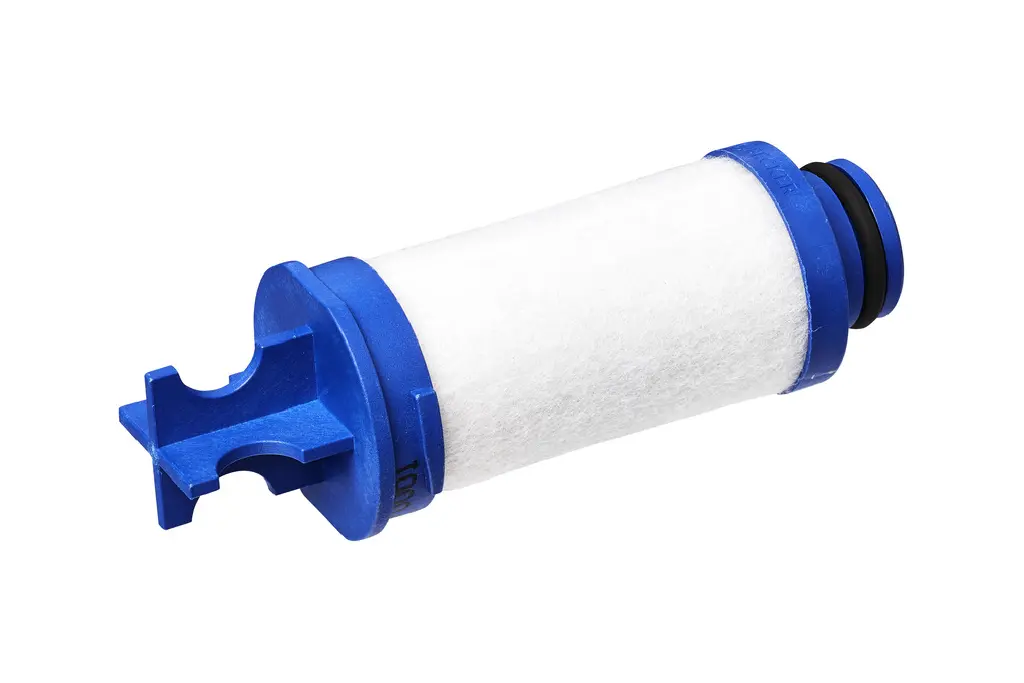

Schmalz part
VST EVE-OG-10
Part no.: 10.03.02.00114
Set of parts subject to wear pump
Price
Price on request
excl. VAT, shipping & packagingSpecifications
| Utilization design | Pump EVE-OG |
|---|---|
| Size | 10 |
Product family
The vacuum generators from Schmalz are specially designed for the demanding conditions on CNC machining centers. By separating liquids and chips and continuously monitoring the vacuum, they offer optimum conditions for efficient and reliable machining under vacuum.
| Length L | 32 – 700 mm |
|---|---|
| Operating temperature | °C, -40.0 ... 125.0 °C, -40 ... 85 °C |
| Thread G3 | G1-1/4"-F, G3/4"-F, G1/8"-F |
| Protection type IP | IP 54, IP 55, IP 67 |
| Thread G1 | G3/8"-M, G1/8"-F, G3/4"-F, G1/4"-F |
| Voltage | 250V, 24V - DC, 18-30V-DC |
| Max. vacuum | -998 – -980 mbar |
| Rated power at 50 Hz | 0.75 – 2.7 kW |
| Suction rate (50 Hz) | 21 – 100 m³/h |
