Schmalz part

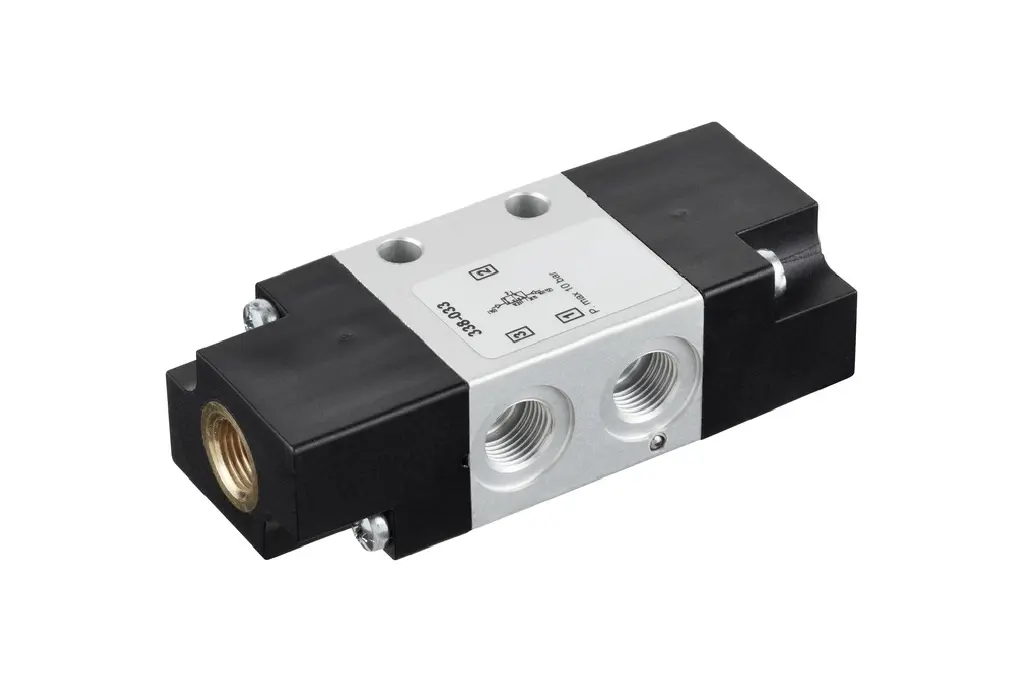

PV 3/2 G1/8-IG BI
Part no.: 10.05.06.00183
Pneumatic multi-way valve for control of vacuum and compressed air
Price
Price on request
excl. VAT, shipping & packagingSpecifications
| Height H | 22 (mm) |
|---|---|
| Thread G1 | G1/8"-F |
| Control valve | Bistable |
Product family
The vacuum generators from Schmalz are specially designed for the demanding conditions on CNC machining centers. By separating liquids and chips and continuously monitoring the vacuum, they offer optimum conditions for efficient and reliable machining under vacuum.
| Length L | 32 – 700 mm |
|---|---|
| Operating temperature | °C, -40.0 ... 125.0 °C, -40 ... 85 °C |
| Thread G3 | G1-1/4"-F, G3/4"-F, G1/8"-F |
| Protection type IP | IP 54, IP 55, IP 67 |
| Thread G1 | G3/8"-M, G1/8"-F, G3/4"-F, G1/4"-F |
| Voltage | 250V, 24V - DC, 18-30V-DC |
| Max. vacuum | -998 – -980 mbar |
| Rated power at 50 Hz | 0.75 – 2.7 kW |
| Suction rate (50 Hz) | 21 – 100 m³/h |
