Schmalz part

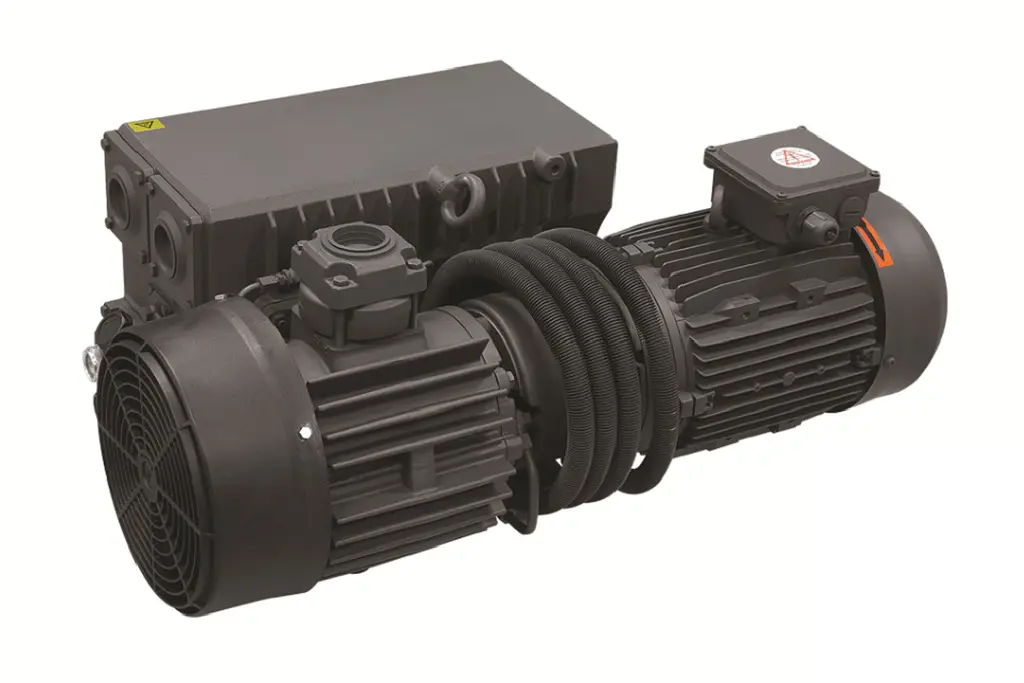

EVE-OG 63 AC3 AQUA IE2
Part no.: 10.03.02.00076
Oil-lubricated pump for maximum vacuum levels, requires little maintenance
Price
$8,906.32
excl. VAT, shipping & packagingSpecifications
| Length L | 626 (mm) |
|---|---|
| Current type | Three phase A.C. |
| Voltage at 50 Hz | 190-208 V / 380 - 415 V AC3 |
| Voltage at 60 Hz | 220 - 230 V / 440 - 480 V AC3 |
| Rated power at 50 Hz | 2 (kW) |
| Rated power at 60 Hz | 2.4 (kW) |
| Suction rate (50 Hz) | 63 (m³/h) |
Product family
The vacuum generators from Schmalz are specially designed for the demanding conditions on CNC machining centers. By separating liquids and chips and continuously monitoring the vacuum, they offer optimum conditions for efficient and reliable machining under vacuum.
| Length L | 32 – 700 mm |
|---|---|
| Operating temperature | °C, -40.0 ... 125.0 °C, -40 ... 85 °C |
| Thread G3 | G1-1/4"-F, G3/4"-F, G1/8"-F |
| Protection type IP | IP 54, IP 55, IP 67 |
| Thread G1 | G3/8"-M, G1/8"-F, G3/4"-F, G1/4"-F |
| Voltage | 250V, 24V - DC, 18-30V-DC |
| Max. vacuum | -998 – -980 mbar |
| Rated power at 50 Hz | 0.75 – 2.7 kW |
| Suction rate (50 Hz) | 21 – 100 m³/h |
