Schmalz part

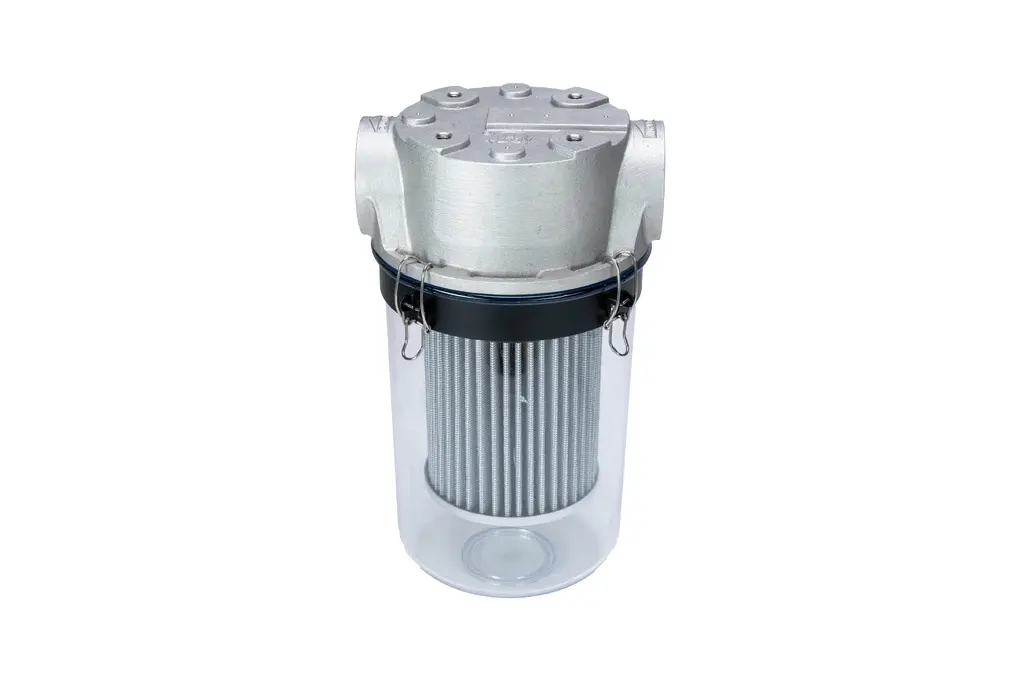

VFT G2-1/2-IG 5
Part no.: 10.07.01.50110
Vacuum cup filter with transparent housing and replaceable filter
Price
$1,056.88
excl. VAT, shipping & packagingSpecifications
| Connection | G2-1/2"-F |
|---|---|
| Nominal flow rate | 5950 (l/min) |
| Nominal flow rate | 357 (m³/h) |
| Filter pore size | 5 (µm) |
Product family
Filters are used in order to protect the vacuum generator and the valve from contamination in dusty environments. The filters are installed between the vacuum generator or valve and the suction cup.
| Length L | 3 – 539 mm |
|---|---|
| Outside diameter D | 25 – 240 mm |
| Filter pore size | 3 – 170 µm |
| Weight | 18 – 2073 g |
| Internal diameter d | 4.5 – 89 mm |
| Size | 1/4-Draht, Picl-4.5, Picl-6, Picl-8, Picl-24 … |
| Width B | 42 – 88.9 mm |
| Height H | 36 – 52 mm |
| Hole spacing X1 | 36 – 70 mm |
