Schmalz part

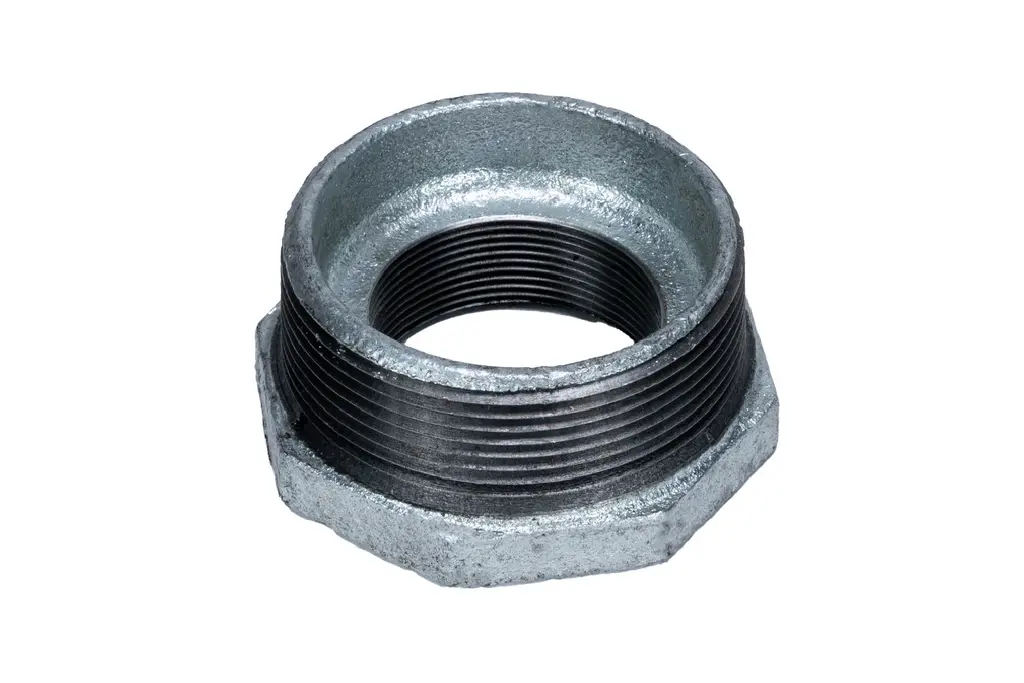

RED-STK NPT4-AG NPT3-IG ST
Part no.: 10.08.04.50033
Reduction piece with hexagon
Price
Price on request
excl. VAT, shipping & packagingSpecifications
| Thread G1 | NPT4-M |
|---|---|
| Thread G2 | NPT3-F |
| Length L | 10.6 (mm) |
| Material | Steel |
Product family
Filters are used in order to protect the vacuum generator and the valve from contamination in dusty environments. The filters are installed between the vacuum generator or valve and the suction cup.
| Length L | 3 – 539 mm |
|---|---|
| Outside diameter D | 25 – 240 mm |
| Filter pore size | 3 – 170 µm |
| Weight | 18 – 2073 g |
| Internal diameter d | 4.5 – 89 mm |
| Size | 1/4-Draht, Picl-4.5, Picl-6, Picl-8, Picl-24 … |
| Width B | 42 – 88.9 mm |
| Height H | 36 – 52 mm |
| Hole spacing X1 | 36 – 70 mm |
