Schmalz part

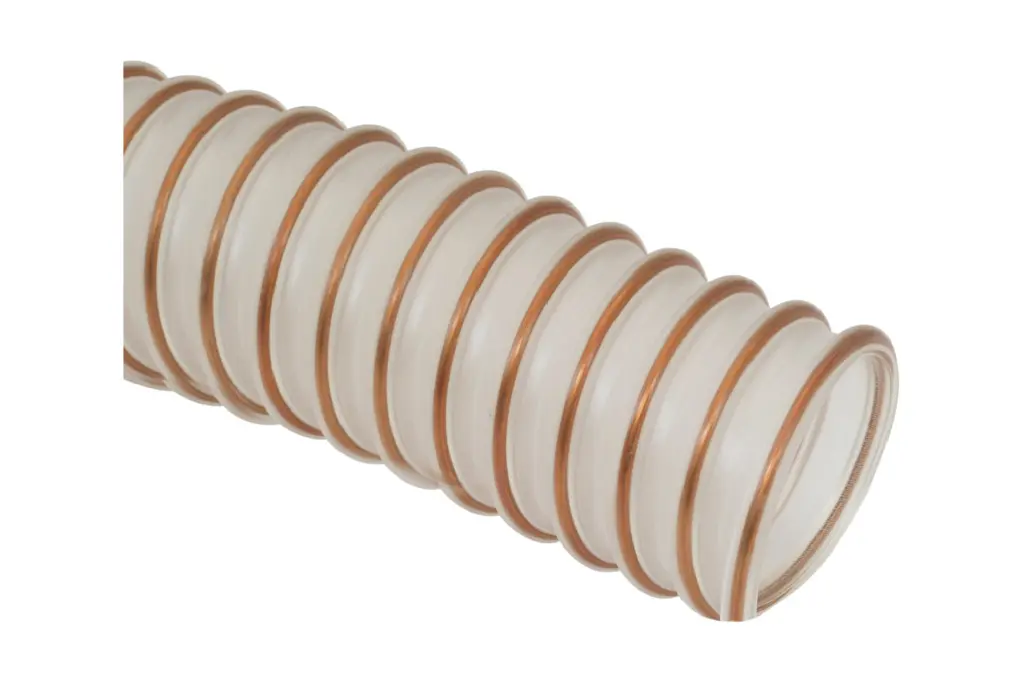

VSL 71-60x15 PU-DS-AS TR
Part no.: 10.07.09.00232
Hose for vacuum and compressed-air systems
Price
Price on request
excl. VAT, shipping & packagingSpecifications
| Outside diameter D | 71 (mm) |
|---|---|
| Internal diameter d | 60 (mm) |
| Length L | 15 (m) |
| Material hose | PU, wire spiral, antistatic |
| Bending radius min. | 40 (mm) |
| Pressure range (operating pressure) [bar] | -0.69 ... 2.09 bar |
| Operating temperature | -40 ... 90 °C |
| Color | Transparent |
Product family
Material PA, PE, PU, PVC
| Weight / Meter | 0.007 – 1490 g/m |
|---|---|
| Internal diameter d | 2 – 100 mm |
| Outside diameter D | 4 – 111 mm |
| Design hose type | 4-2, 26-19, 15-9, 41-32, 21-12 … |
| Pressure range (operating pressure) [bar] | -0.95 ... 10.00 bar, -0.90 ... 5.00 bar, bar, -0.85 ... 4.00 bar, -0.88 ... 7.00 bar … |
| Operating temperature | -40 ... 60 °C, -15 ... 65 °C, °C, -20 ... 70 °C, -40 ... 90 °C … |
| Length max. | 10 – 100 m |
| Material hose | PU, PVC with wire spiral, PVC with tissue, PVC with PVC-spiral, PE … |
| Product family | VSL |
