Schmalz part

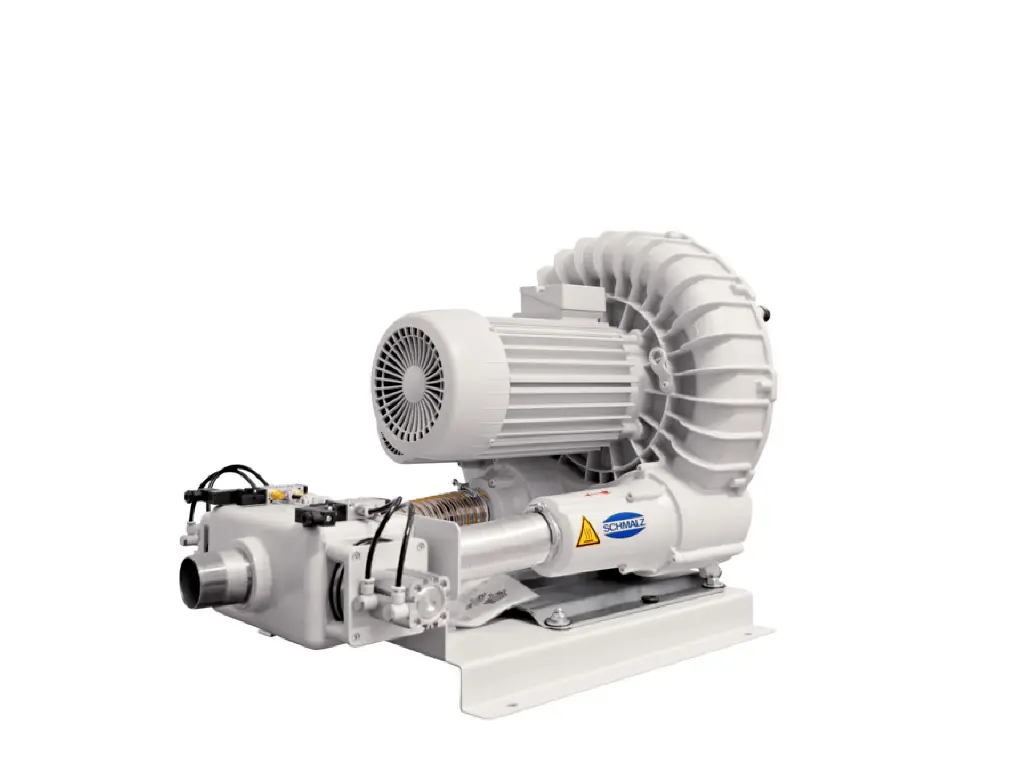

SB 390 245 3.6 IE3-TYP2 ER
Part no.: 10.04.01.00150
Vacuum Blower for high suction rate
Price
$14,707.30
excl. VAT, shipping & packagingSpecifications
| Suction rate (60 Hz) | 390 (m³/h) |
|---|---|
| Vacuum (60 Hz) | 245 (mbar) |
| Rated power at 60 Hz | 3.6 (kW) |
| Version | IE3:US/CAN |
| Voltage at 60 Hz | YY230 / Y460 V ±10 % |
| Color | RAL 7035 Light grey |
| Approval | UL/CSA |
| with | Electro-pneumatic reversing |
| Weight | 78 (kg) |
Product family
Suction rate from 195 m³/h to 610 m³/h
| Width B | 306 – 537 mm |
|---|---|
| Width B1 | 480 – 559 mm |
| Internal diameter d | 13 mm |
| Thread G1 | G2"-M, G2-1/2"-M |
| Height H | 407 – 646 mm |
| Length L | 776 – 1146 mm |
| Hole spacing X1 | 350 – 730 mm |
| Hole spacing Y1 | 446 – 506 mm |
| Max. vacuum | 175 – 445 mbar |
