Schmalz part

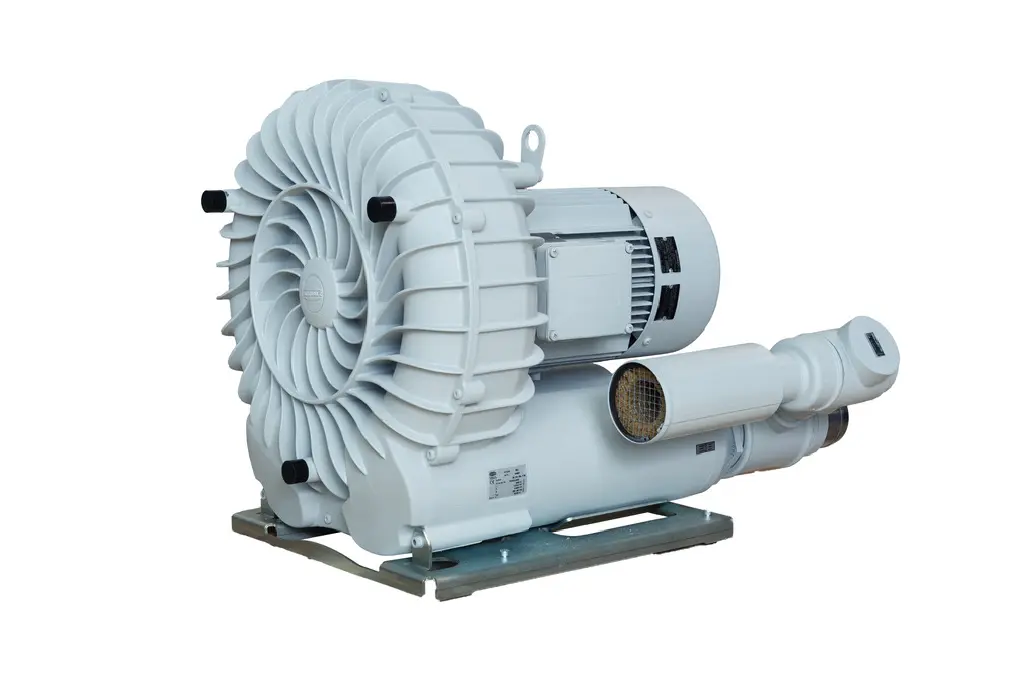

SB 510 390 11 IE3-TYP1
Part no.: 10.04.01.00197
Vacuum Blower for high suction rate
Price
Price on request
excl. VAT, shipping & packagingSpecifications
| Suction rate (50 Hz) | 510 (m³/h) |
|---|---|
| Suction rate (60 Hz) | 605 (m³/h) |
| Vacuum (50 Hz) | 390 (mbar) |
| Vacuum (60 Hz) | 390 (mbar) |
| Rated power at 50 Hz | 11 (kW) |
| Rated power at 60 Hz | 13.2 (kW) |
| Voltage at 50 Hz | D400 V ±10 % |
| Voltage at 60 Hz | D460 V ±10 % |
| Voltage 60 Hz | S071 |
| Version | IE3:EU/CN/IND |
| Approval | UL/CSA |
| Approval | UL/CSA |
| Weight | 135 (kg) |
| Color | RAL 7035 Light grey |
Product family
Suction rate from 75 m³/h to 1,250 m³/h
| Suction rate (50 Hz) | 75 – 17499.9 m³/h |
|---|---|
| Outside diameter D2 | 40 – 100 mm |
| Thread G1 | G1-1/2"-F, G2"-F, G4"-F, G1-1/4"-F |
| Height H | 271 – 611 mm |
| Length L | 332 – 663 mm |
| Hole spacing X1 | 100 – 350 mm |
| Hole spacing Y1 | 200 – 400 mm |
| Suction rate (60 Hz) | 91 – 1250 m³/h |
| Vacuum (60 Hz) | 80 – 400 mbar |
