Schmalz part

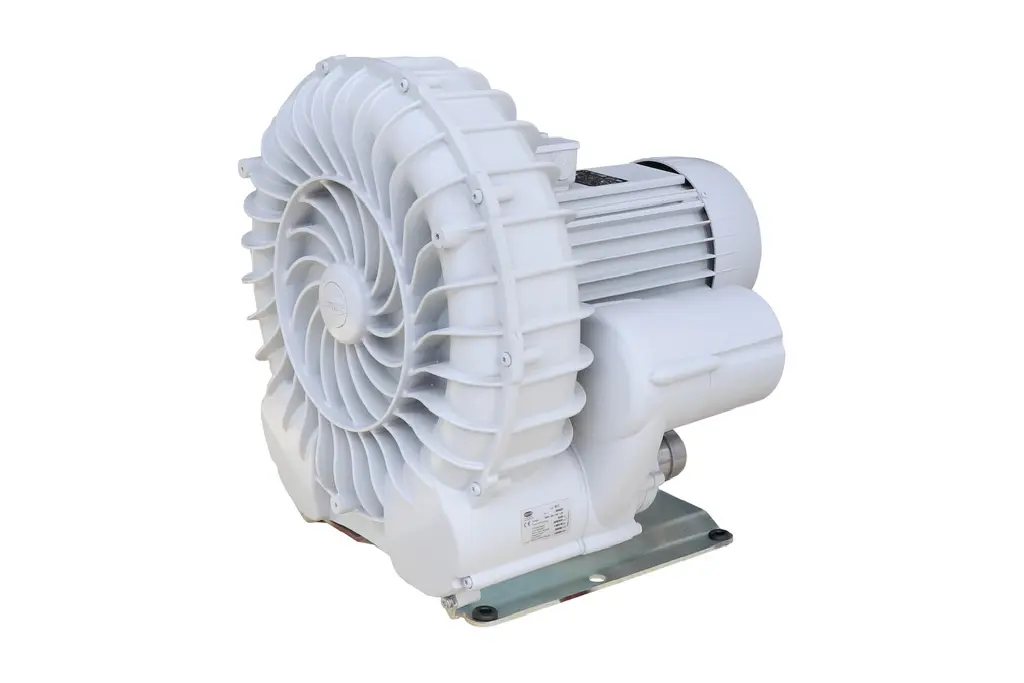

SB 470 290 4.8 IE3-TYP2
Part no.: 10.04.01.00077
Vacuum Blower for high suction rate
Price
$6,783.29
excl. VAT, shipping & packagingSpecifications
| Suction rate (60 Hz) | 470 (m³/h) |
|---|---|
| Vacuum (60 Hz) | 290 (mbar) |
| Rated power at 60 Hz | 4.8 (kW) |
| Voltage at 60 Hz | D230 / Y460 V |
| Voltage 60 Hz | S058 |
| Version | IE3:US/CAN |
| Approval | UL/CSA |
| Approval | UL/CSA |
| Weight | 53 (kg) |
| Color | RAL 7035 Light grey |
Product family
Suction rate from 75 m³/h to 1,250 m³/h
| Suction rate (50 Hz) | 75 – 17499.9 m³/h |
|---|---|
| Outside diameter D2 | 40 – 100 mm |
| Thread G1 | G1-1/2"-F, G2"-F, G4"-F, G1-1/4"-F |
| Height H | 271 – 611 mm |
| Length L | 332 – 663 mm |
| Hole spacing X1 | 100 – 350 mm |
| Hole spacing Y1 | 200 – 400 mm |
| Suction rate (60 Hz) | 91 – 1250 m³/h |
| Vacuum (60 Hz) | 80 – 400 mbar |
