Schmalz part

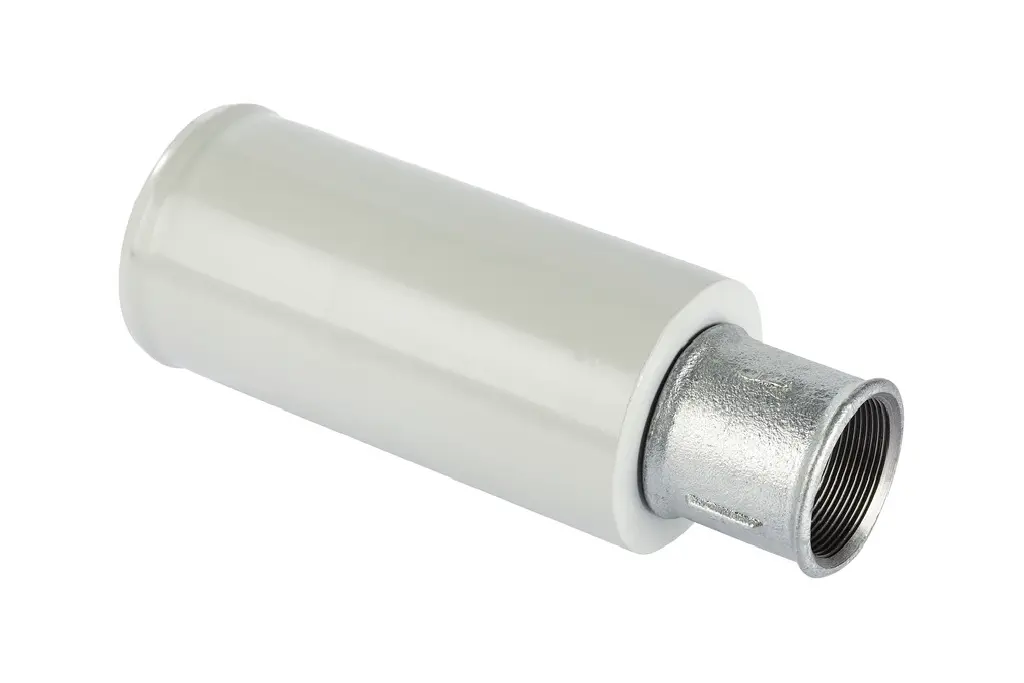

SD G2-IG 102x211 SGBL
Part no.: 10.04.04.00163
Silencer for vacuum generators
Price
$650.96
excl. VAT, shipping & packagingSpecifications
| Utilization design | Blower |
|---|---|
| Thread G1 | G2"-F |
| Outside diameter D | 102 (mm) |
| Length L | 211 (mm) |
Product family
For high volume flows/suction capacity at low vacuum values. Optimal for porous workpieces.
| Length L | 55 – 1055 mm |
|---|---|
| Thread G1 | G2"-F, R4"-M, G2"-M, G2-1/2"-M, G1-1/2"-M … |
| Length L1 | 276 – 1281 mm |
| Width B2 | 60 – 214 mm |
| Height H | 250.6 – 703 mm |
| Length L2 | 65 – 384 mm |
| Hole spacing X1 | 240 – 800 mm |
| Weight | 2.6 – 85 kg |
| Width B | 586 – 727 mm |
