Schmalz part

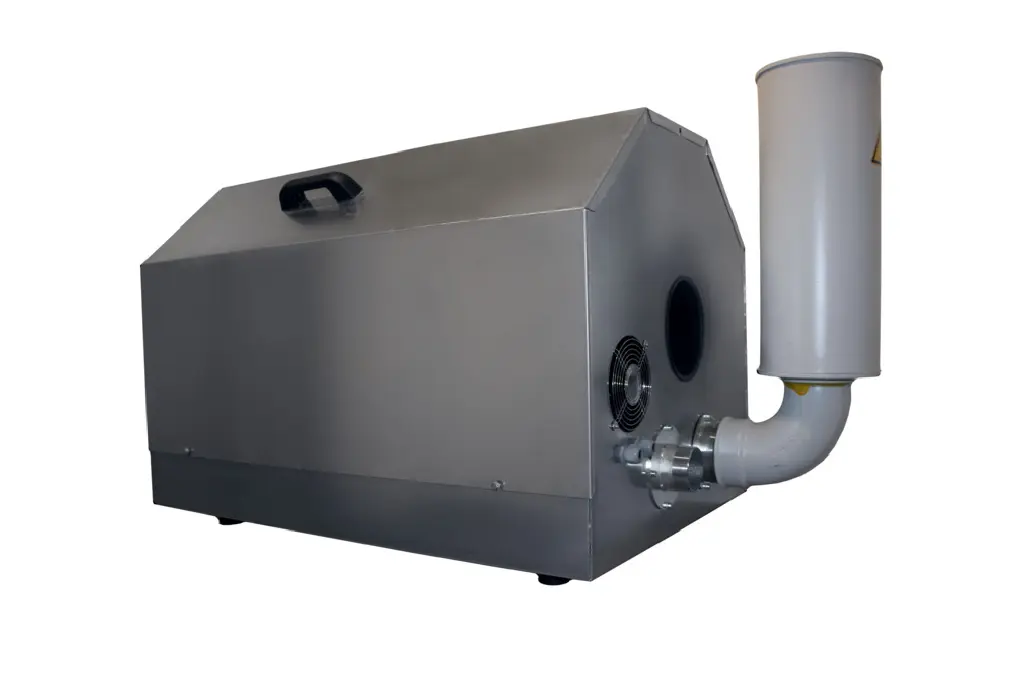

SBB-230V-AC-ST-VZ-LUE SB
Part no.: 10.04.04.00238
Silencer box for reduction of the noise level
Price
$7,406.53
excl. VAT, shipping & packagingSpecifications
| Utilization design | Blower SB |
|---|---|
| Voltage DC | 230 V - AC |
| Material | Steel |
| Surface | galvanised |
| Thread G1 | G2-1/2"-M |
| Length L | 1055 (mm) |
| Width B | 727 (mm) |
| Height H | 703 (mm) |
Product family
For high volume flows/suction capacity at low vacuum values. Optimal for porous workpieces.
| Length L | 55 – 1055 mm |
|---|---|
| Thread G1 | G2"-F, R4"-M, G2"-M, G2-1/2"-M, G1-1/2"-M … |
| Length L1 | 276 – 1281 mm |
| Width B2 | 60 – 214 mm |
| Height H | 250.6 – 703 mm |
| Length L2 | 65 – 384 mm |
| Hole spacing X1 | 240 – 800 mm |
| Weight | 2.6 – 85 kg |
| Width B | 586 – 727 mm |
