Schmalz part

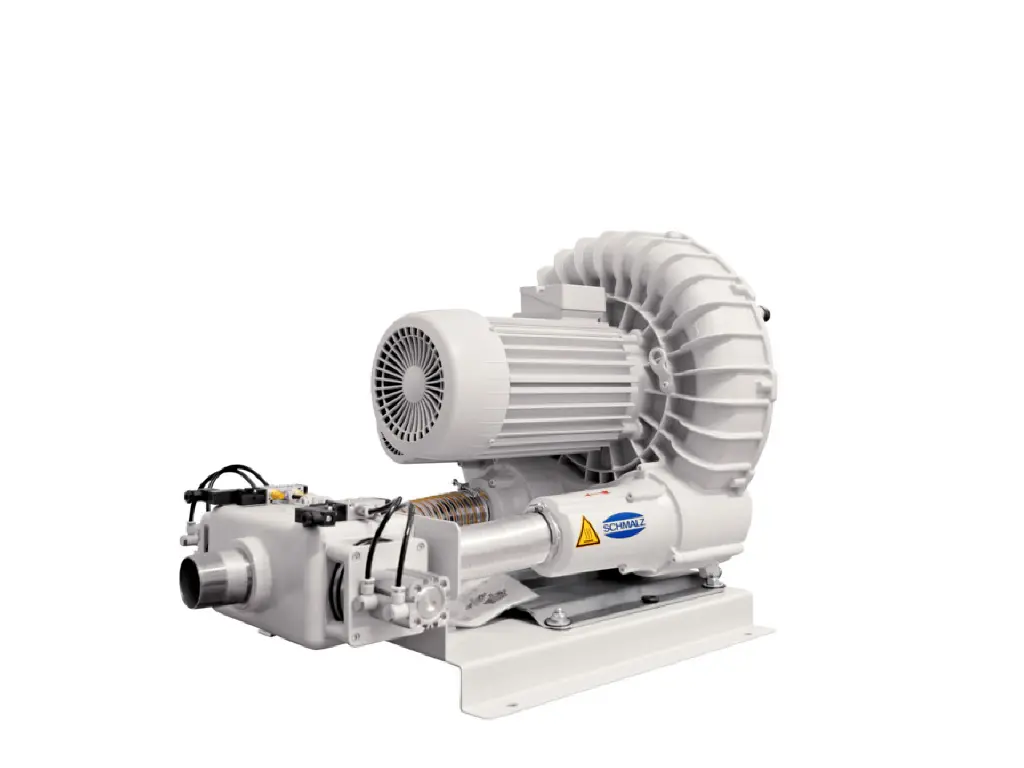

SB 110 350 1.8 IE3-TYP2 ER
Part no.: 10.04.01.00142
Vacuum Blower for high suction rate
Price
$10,402.70
excl. VAT, shipping & packagingSpecifications
| Suction rate (60 Hz) | 110 (m³/h) |
|---|---|
| Vacuum (60 Hz) | 350 (mbar) |
| Rated power at 60 Hz | 1.8 (kW) |
| Version | IE3:US/CAN |
| Voltage at 60 Hz | YY230 / Y460 V ±10 % |
| Color | RAL 7035 Light grey |
| Approval | UL/CSA |
| with | Electro-pneumatic reversing |
| Weight | 64 (kg) |
Product family
For high volume flows/suction capacity at low vacuum values. Optimal for porous workpieces.
| Length L | 55 – 1055 mm |
|---|---|
| Thread G1 | G2"-F, R4"-M, G2"-M, G2-1/2"-M, G1-1/2"-M … |
| Length L1 | 276 – 1281 mm |
| Width B2 | 60 – 214 mm |
| Height H | 250.6 – 703 mm |
| Length L2 | 65 – 384 mm |
| Hole spacing X1 | 240 – 800 mm |
| Weight | 2.6 – 85 kg |
| Width B | 586 – 727 mm |
