Schmalz part

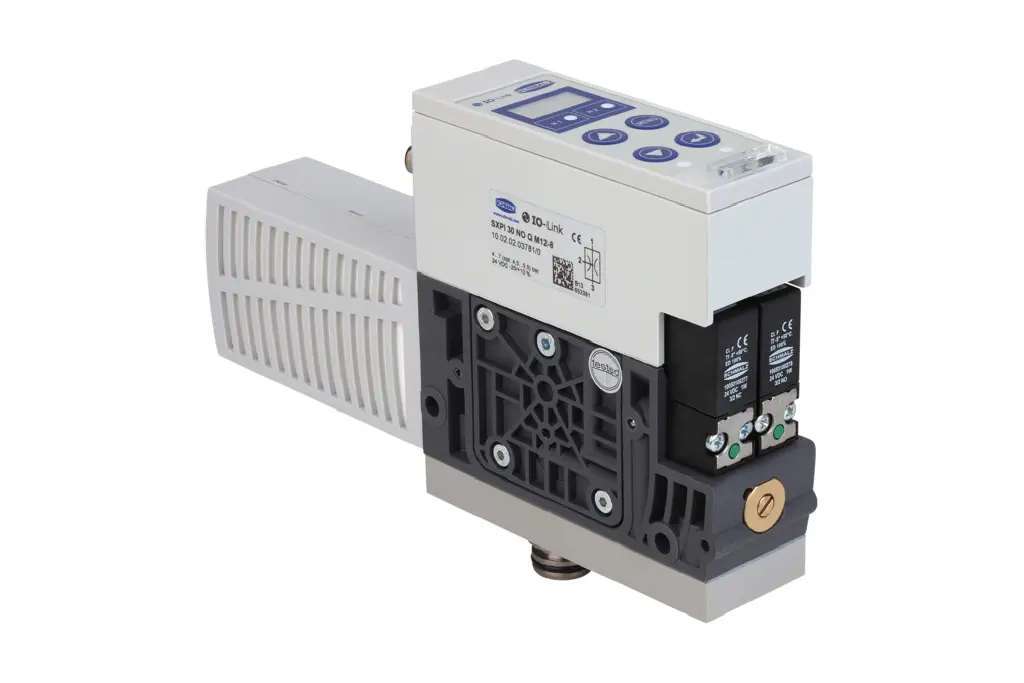

SXPi 30 NO Q M12-8
Part no.: 10.02.02.03781
Compact ejector with Condition Monitoring and air-saving function
Price
$2,008.22
excl. VAT, shipping & packagingSpecifications
| Nozzle diameter | 3 (mm) |
|---|---|
| Control valve | Normally open |
| Electrical connection | Male connect M12, 8 pol |
| Communication | IO-Link (Class A) |
| Suction rate (max.) | 220 (l/min) |
| Air consumption suction | 380 (l/min) |
| Pressure range (operating pressure) [bar] | 3.0 ... 6.0 bar |
| Max. vacuum | 850 (mbar) |
| Sound pressure level free | 72 (dB(A)) |
| Protection type IP | IP 65 |
Product family
The Vacuum blower (family, SBV) by Schmalz is a high-flow blower designed for efficient vacuum generation. It operates within a suction capacity range of 75 to 1,250 m³/h and achieves a vacuum level of approximately 40%.
| Suction capacity | 75–1,250 m³/h |
|---|---|
| Vacuum level | ~40% |
