Schmalz part

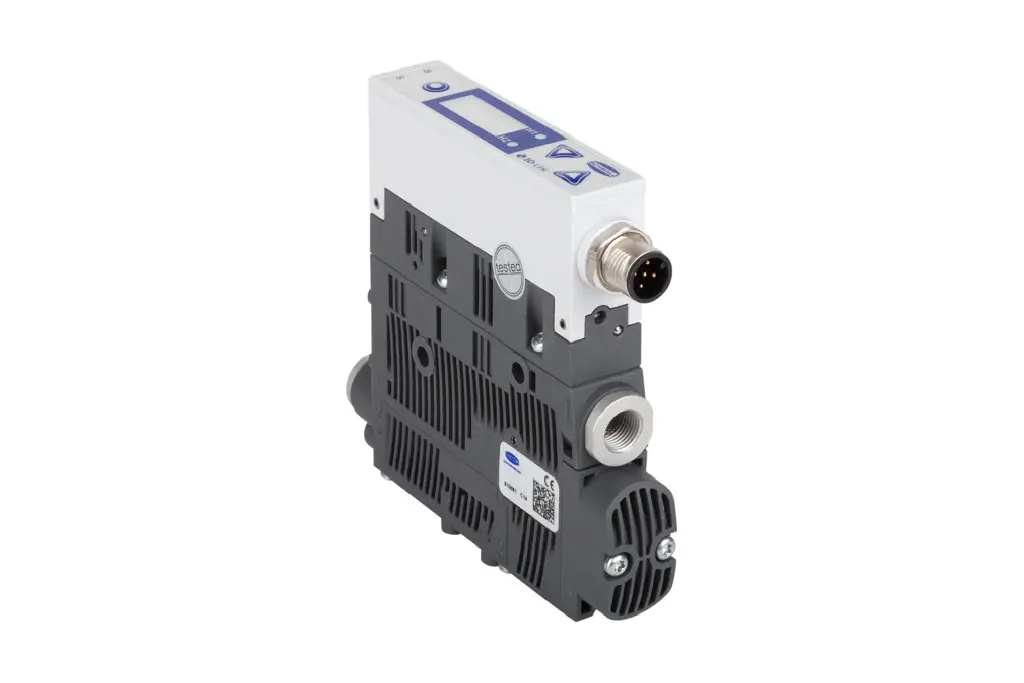

SCPSi 2-14 G02 NO M12-5
Part no.: 10.02.02.04369
Compact ejector with integrated air- saving control in slim design and IO-Link functionality
Price
$1,206.09
excl. VAT, shipping & packagingSpecifications
| Nozzle size | 2-14 |
|---|---|
| Connection | G1/8"(1)-G1/8"(2) |
| Electrical connection | Male connect M12, 5 pol |
| Suction rate (max.) | 71.5 (l/min) |
| Air consumption suction | 82 (l/min) |
| Pressure range (operating pressure) [bar] | 3.0 ... 6.0 bar |
| Protection type IP | IP 65 (with plug) |
| Max. vacuum | -850 (mbar) |
| Control valve | Normally open |
| Operation mode | Digital air-saving function |
Product family
The Vacuum blower (family, SBV) by Schmalz is a high-flow blower designed for efficient vacuum generation. It operates within a suction capacity range of 75 to 1,250 m³/h and achieves a vacuum level of approximately 40%.
| Suction capacity | 75–1,250 m³/h |
|---|---|
| Vacuum level | ~40% |
