Schmalz part

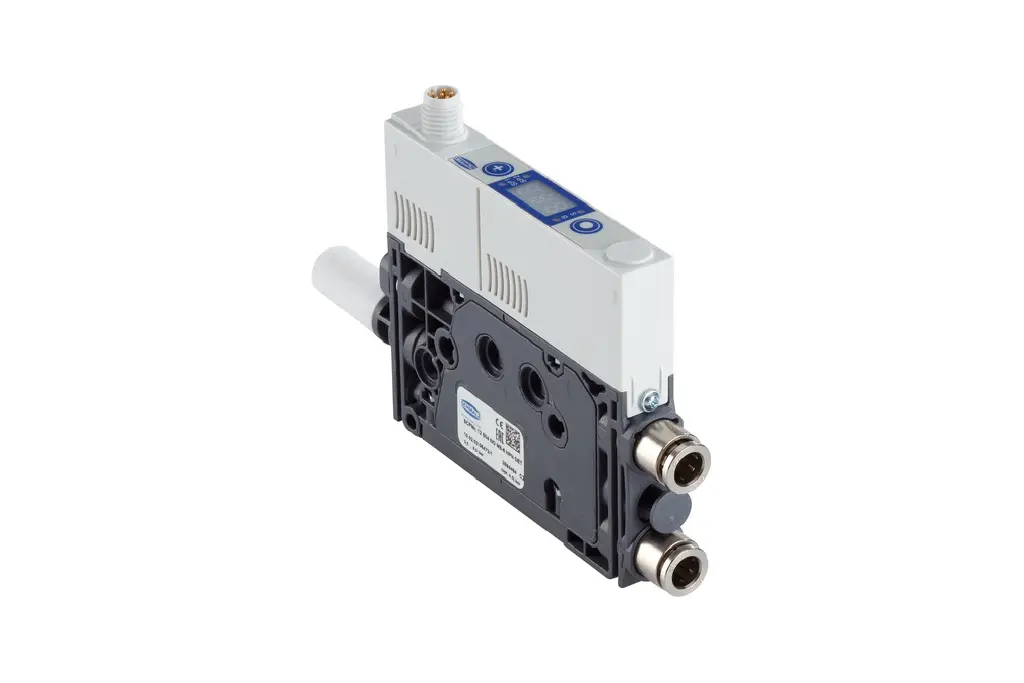

SCPMc 12 S04 NO M8-6 NPN
Part no.: 10.02.02.06472
Mini Compact Ejector with air-saving function and display with
Price
$379.01
excl. VAT, shipping & packagingSpecifications
| Connection | Hose D6(1)-D6(2) |
|---|---|
| Suction rate (max.) | 30 (l/min) |
| Air consumption suction | 51 (l/min) |
| Sound pressure level free | 76 (dB(A)) |
| Pressure range (operating pressure) [bar] | 3.5 ... 6.0 bar |
| Max. vacuum | 920 (mbar) |
| Electrical connection | Male connect M8, 6 pole |
| Construction vacuum switch | NPN switching |
| Control valve | Normally open |
| Protection type IP | IP 40 |
Product family
The Vacuum blower (family, SBV) by Schmalz is a high-flow blower designed for efficient vacuum generation. It operates within a suction capacity range of 75 to 1,250 m³/h and achieves a vacuum level of approximately 40%.
| Suction capacity | 75–1,250 m³/h |
|---|---|
| Vacuum level | ~40% |
