Schmalz part

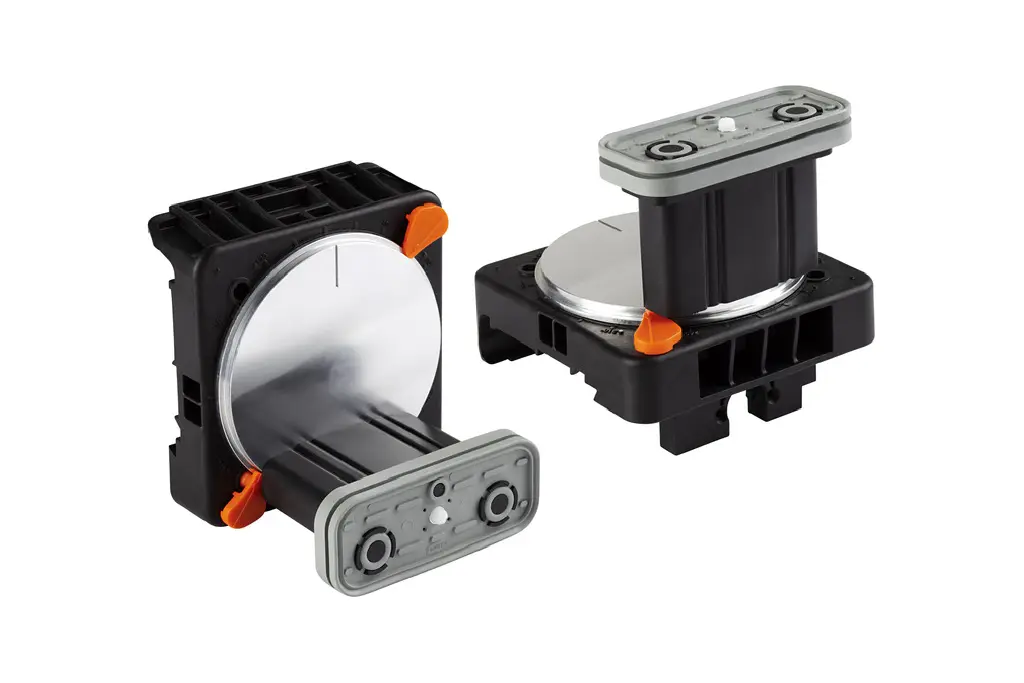

VCBL-S6 120x50x110 S-360-15 TV
Part no.: 10.01.12.04454
Vacuum block for SCM/Morbidelli console - Type 6
Price
$716.95
excl. VAT, shipping & packagingSpecifications
| Dimension (LxW) | 120x50 |
|---|---|
| Height H | 110 (mm) |
| Arrangement | insertable 360°/15° |
| Additional function vacuum block | Touch valve |
| Applications | For machine tables Flexmatic, Start and Pilot further accessories are required |
Product family
For TV systems from SCM · Height 50 mm, 75 mm and 110 mm
| Width B | 30 – 145 mm |
|---|---|
| Height H | 25 – 110 mm |
| Height H1 | 39.5 – 147.5 mm |
| Length L | 120 – 145 mm |
| Width B1 | 129 – 144 mm |
| Height H2 | 17 – 77 mm |
| Length L1 | 135 – 148.5 mm |
| Radius | 33 – 55 mm |
| Length L2 | 104 mm |
