Schmalz part

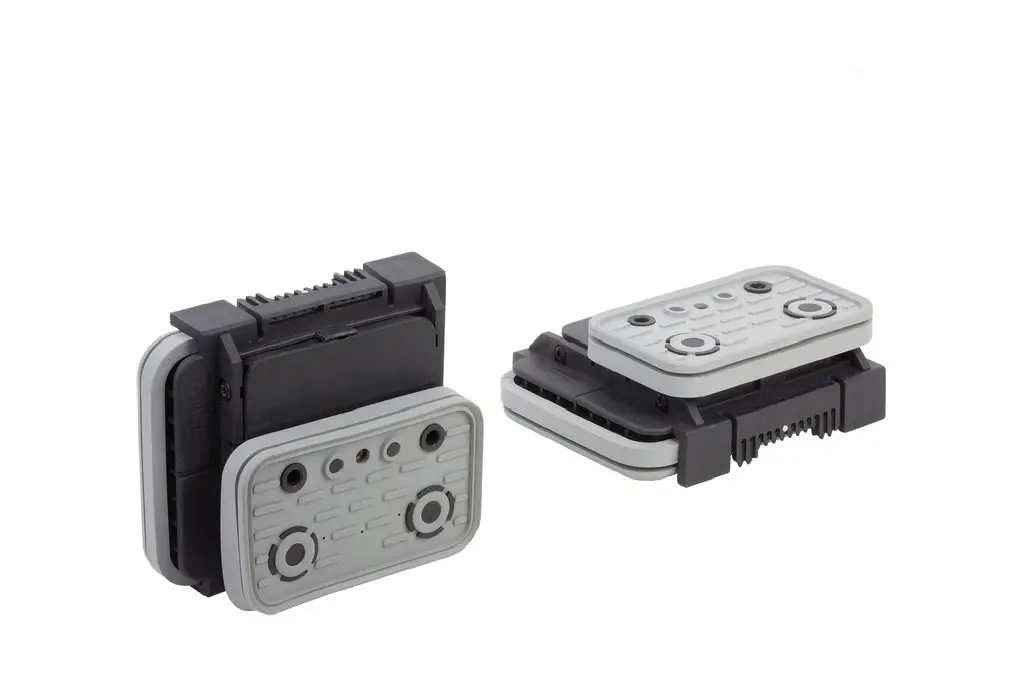

VCBL-K2 125x75x50 L
Part no.: 10.01.12.00628
Vacuum block for Schmalz 2-circuit console
Price
$480.26
excl. VAT, shipping & packagingSpecifications
| Dimension (LxW) | 125 x 75 |
|---|---|
| Dimension suction plate bottom | 140 x 115 mm |
| Height H | 50 (mm) |
| Arrangement | longways |
Product family
Height 50 mm, 75 mm, 100 mm and 125 mm
| Width B | 30 – 115 mm |
|---|---|
| Height H | 50 – 125 mm |
| Height H2 | 16 – 105 mm |
| Length L | 120 – 140 mm |
| Length L1 | 140 – 170 mm |
| Dimension suction plate bottom | 140x115 mm |
| Weight | 0.558 – 1.247 kg |
| Length L2 | 16 – 102.5 mm |
| Radius | 12 – 35 mm |
