Schmalz part

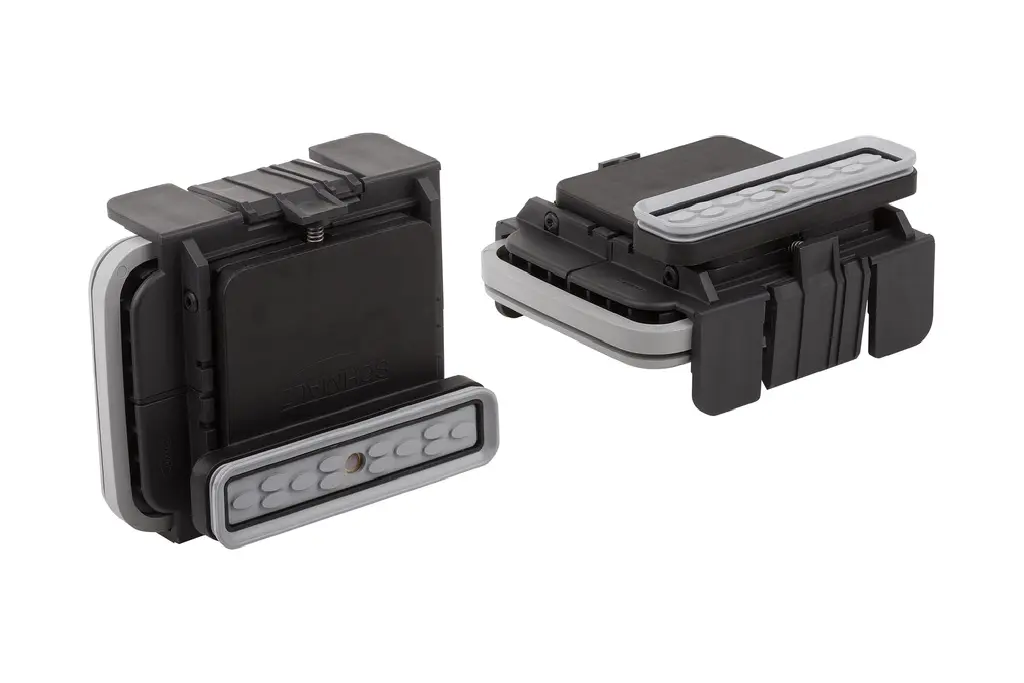

VCBL-K1 130x30x50 L
Part no.: 10.01.12.00378
Vacuum block for Schmalz 1-circuit console
Price
$566.00
excl. VAT, shipping & packagingSpecifications
| Dimension (LxW) | 130 x 30 |
|---|---|
| Dimension suction plate bottom | 140 x 115 mm |
| Height H | 50 (mm) |
| Arrangement | longways |
Product family
Height 50 mm, 85 mm and 125 mm
| Height H | 50 – 125 mm |
|---|---|
| Dimension suction plate bottom | 140x115 mm |
| Width B | 30 – 130 mm |
| Length L | 120 – 148 mm |
| Weight | 0.6 – 1.239 kg |
