Schmalz part

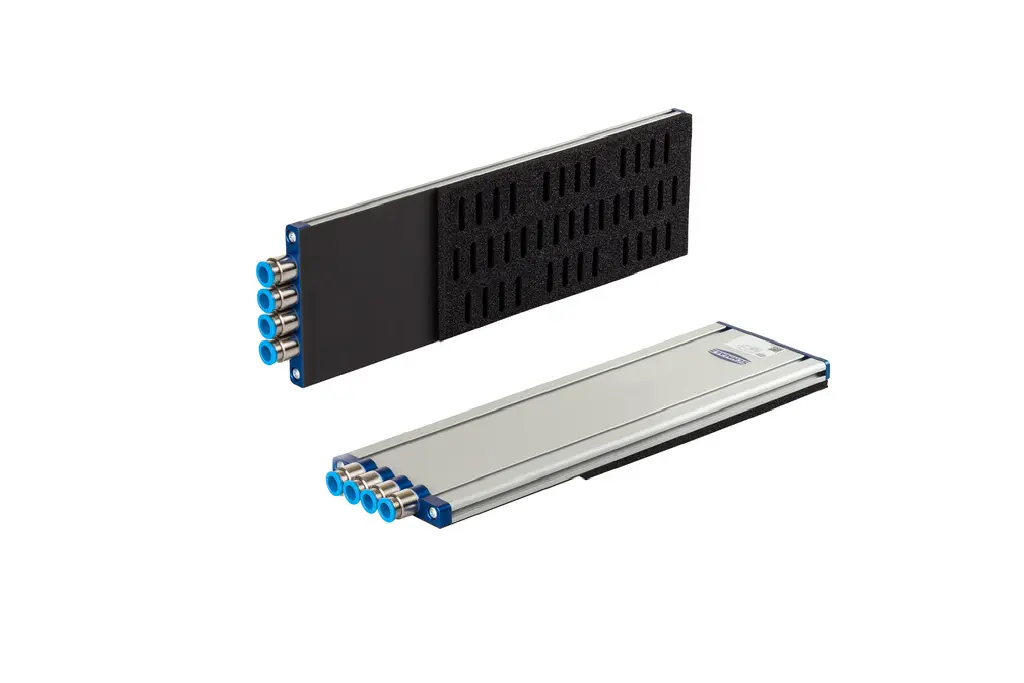

FEL SW60 352 5R18 O10 G12 PZ2
Part no.: 10.01.46.00121
Vacuum area gripping system for external vacuum generator, with flow resistors
Price
$2,832.55
excl. VAT, shipping & packagingSpecifications
| Length L | 352 (mm) |
|---|---|
| Width B | 130 (mm) |
| Height H | 26.5 (mm) |
| Shape | 1x passive zone / 2x suction zone |
| Length L4 | 144 (mm) |
| Length L5 | 90 (mm) |
| Arrangement suction cells | 5 rows, 18 mm |
| Material type | Foam open, height 10 mm |
| Nominal diameter dn | 12 (mm) |
| Weight | 1.2 (kg) |
Product family
Gripping surface (LxW) from 300 x 130 to 800 x 130 mm
| Width B | 130 mm |
|---|---|
| Nominal diameter dn | 12 mm |
| Height H | 26.5 mm |
| Height H1 | 31.3 mm |
| Height H2 | 10 mm |
| Length L | 352 – 748 mm |
| Length L1 | 377.7 – 773.7 mm |
| Length L2 | 112 mm |
| Length L3 | 156.5 – 174.5 mm |
