Schmalz part

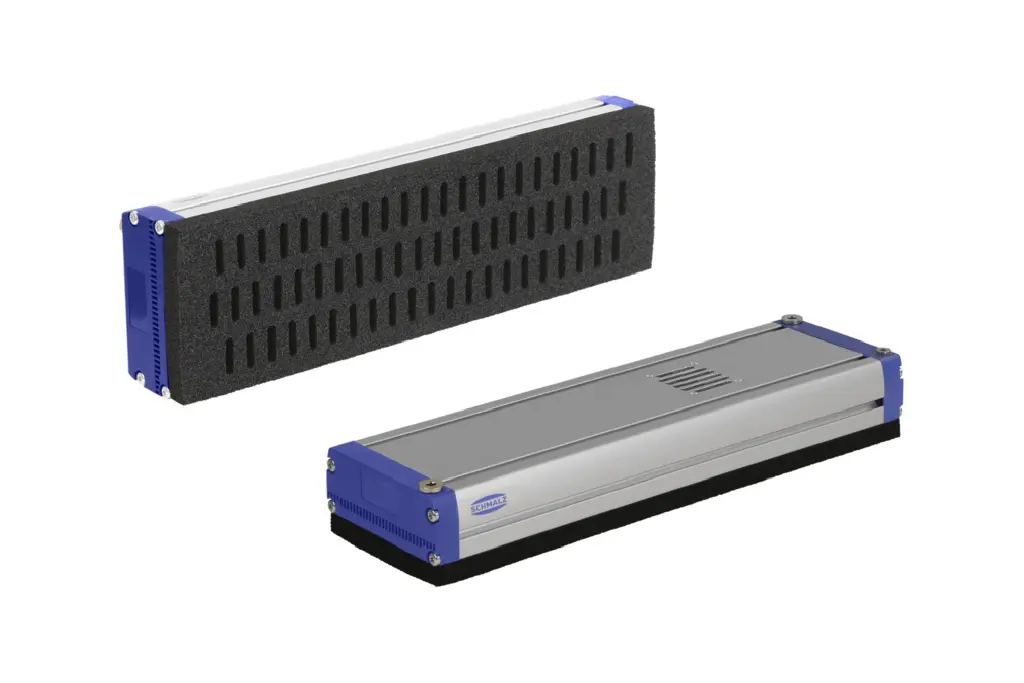

FA-Xb SVK 442 3R18 O20
Part no.: 10.01.38.10028
Vacuum surface gripping system with integrated vacuum generation
Price
$2,985.57
excl. VAT, shipping & packagingSpecifications
| Length L | 442 (mm) |
|---|---|
| Width B | 130 (mm) |
| Function | Basic |
| Arrangement suction cells | 3 rows, 18 mm |
| Material type | Foam open, height 20 mm |
| Valve type | Check valve |
| Suction force at -250 mbar | 550 (N) |
Product family
Universal suction pads for automated palletizing, depalletizing, picker and sorting
| Width B | 130 mm |
|---|---|
| Height H | 70 – 105 mm |
| Height H1 | 99 – 152 mm |
| Height H2 | 20 – 55 mm |
| Length L | 442 – 1234 mm |
| Length L2 | 402 – 1194 mm |
| Hole spacing Y1 | 90 mm |
| Valve type | Check valve |
| Function | Basic, Controlled, Intelligent |
