Schmalz part

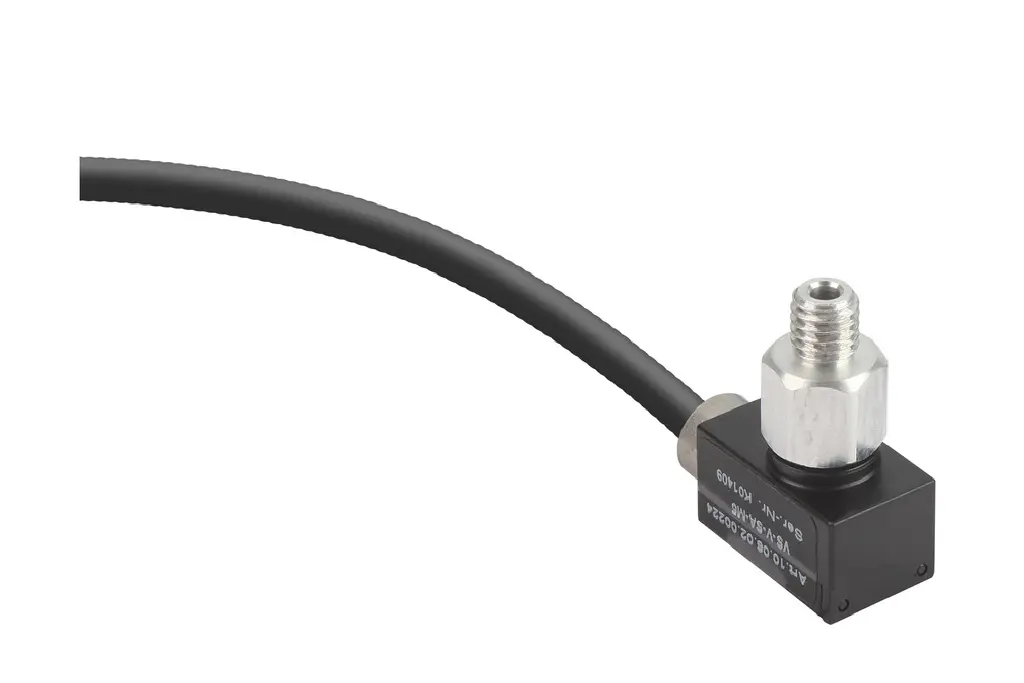

VS-V-SA M5-AG
Part no.: 10.06.02.00224
Miniature vacuum sensor with analogue output signal
Price
$187.84
excl. VAT, shipping & packagingSpecifications
| Connection | M5-M |
|---|---|
| Measuring range [bar] | -1,00 ... 0,00 bar |
| Cable length Lk | 3 (m) |
Product family
Vacuum and pressure sensors with an analog output signal for permanent and exact measurement of vacuum and pressure values. Output via smartphone using NFC technology allows simple access to service and maintenance information.
| Width B | 21 mm |
|---|---|
| Internal diameter d | 10 mm |
| Internal diameter d1 | 3.2 mm |
| d2 | 3.2 mm |
| Height H | 22 mm |
| Height H1 | 34 mm |
| Height H2 | 5.5 mm |
| Length L | 60.5 mm |
| Length L2 | 3 mm |
