HTR-UNI 1N G2 80 10.01.03.00107
Schmalz part

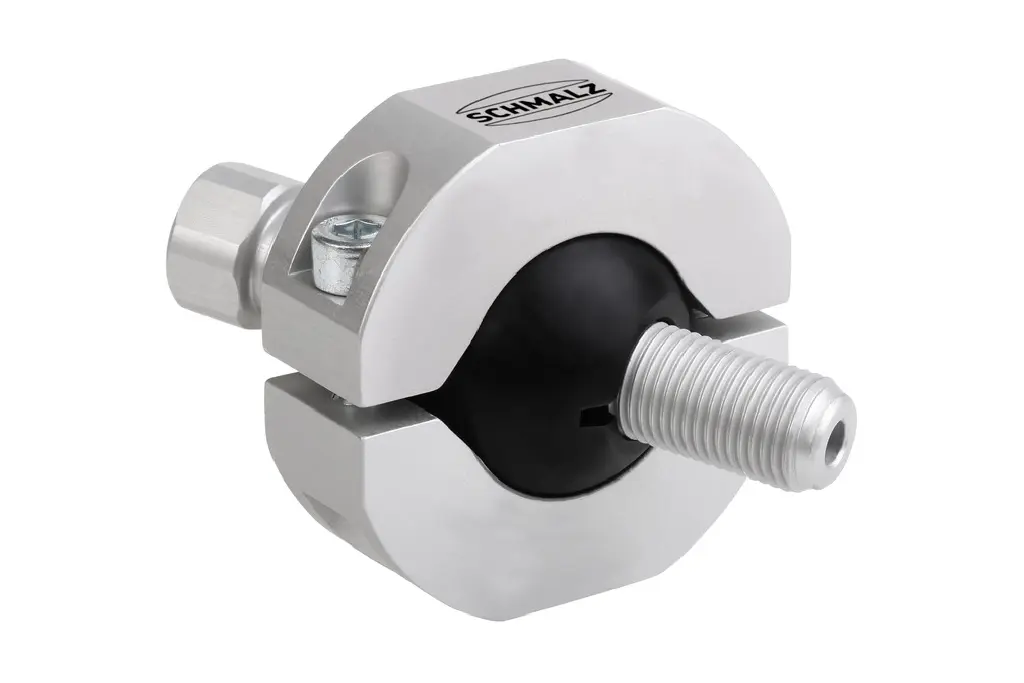

HTR-UNI 1N G2 80

Part no.: 10.01.03.00107

Universal holder for adjustable mounting of suction cups

Price
$258.89
excl. VAT, shipping & packaging
Check availabilityPCE
View at SchmalzAll Universal Holders HTR-UNI variants

Specifications

Suction cup connectionG1/4"-M
Length L180 (mm)
Operating temperature0 ... 80 °C
Cross-beam connection1 nut slot

Product family

Connection G1/4"

Outside diameter D59 mm
Thread G2M6-M
Height H27.5 mm
Length L320 mm
Weight121.7 – 222.1 g
Product familyHTR-UNI
Length L28 – 30 mm
Slewing angle W15 °
Width B44 mm
