Schmalz part

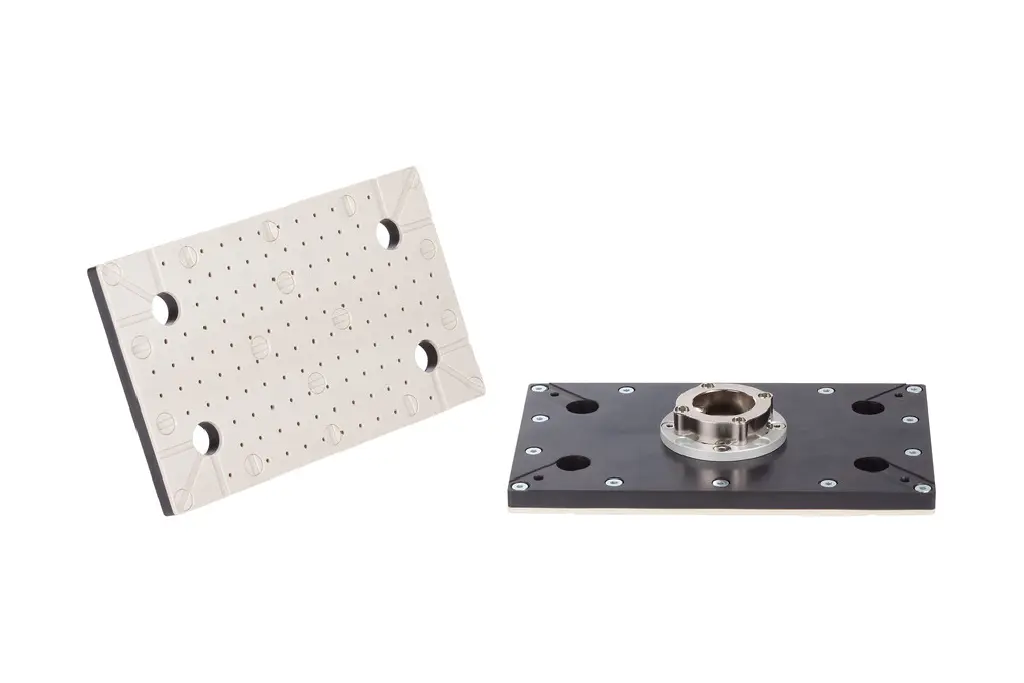

STGG 170x105x26.9 QCFA PEEK
Part no.: 10.01.30.00478
Special area gripper for gentle and extremly dynamic handling of sensitive work pieces
Price
$2,233.62
excl. VAT, shipping & packagingSpecifications
| Length L | 170 (mm) |
|---|---|
| Width B | 105 (mm) |
| Height H | 26.9 (mm) |
| Additional function area gripper | Quick-change adapter |
| Material | Polyetheretherketon |
Product family
Two suction areas 100 x 55 mm and 170 x 105 mm
| Width B | 55 – 105 mm |
|---|---|
| d2 | 14 mm |
| Thread G2 | M4-F |
| Height H | 26.9 – 67.4 mm |
| Height H2 | 10.5 mm |
| Length L | 100 – 170 mm |
| Holding force | 4 ... 15 N, N, 13 ... 45 N, 30 ... 56 N, 85 ... 160 N |
| Suction rate | 160 ... 235 l/min, l/min, 31 ... 38 l/min |
| Air consumption | 60 ... 120 l/min, l/min, 18 ... 28 l/min, ... l/min |
