Schmalz part

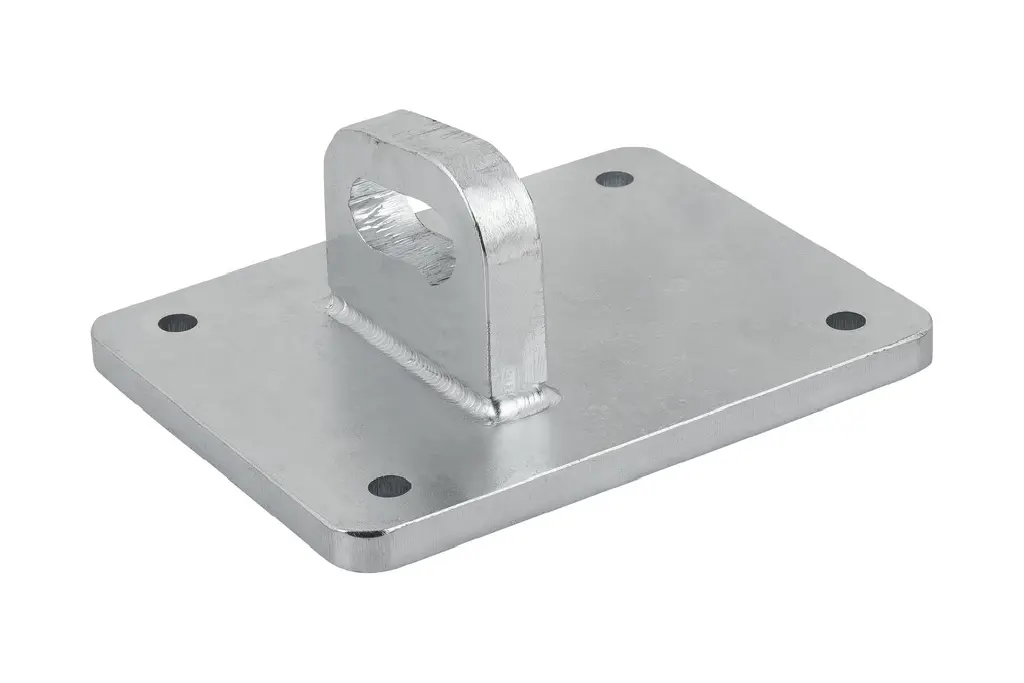

MOD-FLAN 157x120 SBX-C
Part no.: 10.01.20.01274
Flange module
Price
$307.63
excl. VAT, shipping & packagingSpecifications
| Weight | 1.77 (kg) |
|---|---|
| Length L | 157 (mm) |
| Width B | 120 (mm) |
| Height H | 60 (mm) |
| Utilization design | Large-area vacuum gripper-C |
Product family
Spring plunger-combination of "fixed and floating bearings" for jam free compensation of height tolerances at suspension of gripping systems.
| Width B | 85 – 120 mm |
|---|---|
| Height H | 10 mm |
| Length L | 120 – 400 mm |
| Thread G1 | G1/2"-F |
| Height H1 | 25 – 33 mm |
| Length L3 | 70 – 130 mm |
| Hole spacing X1 | 90 – 280 mm |
| Hole spacing Y1 | 65 – 90 mm |
| Length L2 | 20 – 60 mm |
