Schmalz part

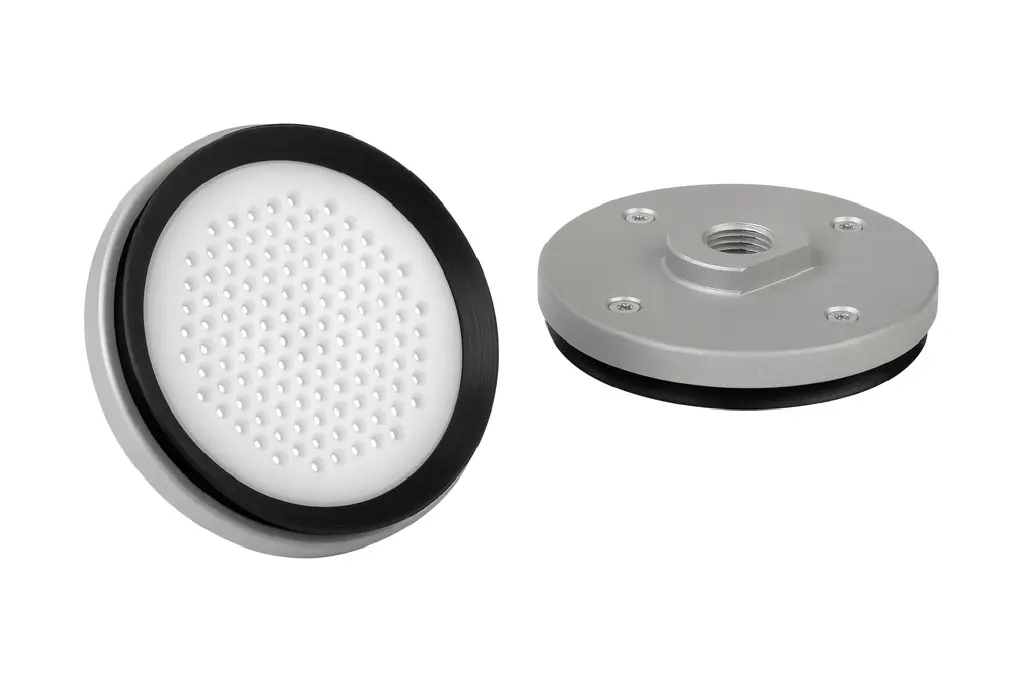

SPL 115 POM-NBR G1/4-IG
Part no.: 10.01.01.13110
Flat suction cup (round)
Price
$330.67
excl. VAT, shipping & packagingSpecifications
| Size | 115 |
|---|---|
| Suction cup material | Polyoxymethylene perbunan POM-NBR |
| Connection | G1/4-IG |
Product family
Suction area (Ø) from 40 mm to 115 mm
| Connection | G1/8"-F, G1/8-IG, G1/4"-F, G1/4-IG |
|---|---|
| Head diameter Dk | 42 – 118 mm |
| Diameter Ds | 39 – 113 mm |
| Thread G1 | G1/8"-F, G1/4"-F |
| Height H | 20.5 – 30.5 mm |
| Thread length LG1 | 9.5 – 12 mm |
| Key width SW1 | 17 – 22 mm |
| Spring stroke Z | 2 – 4 mm |
| Suction force (-600mbar) | 70 – 600 N |
