Schmalz part

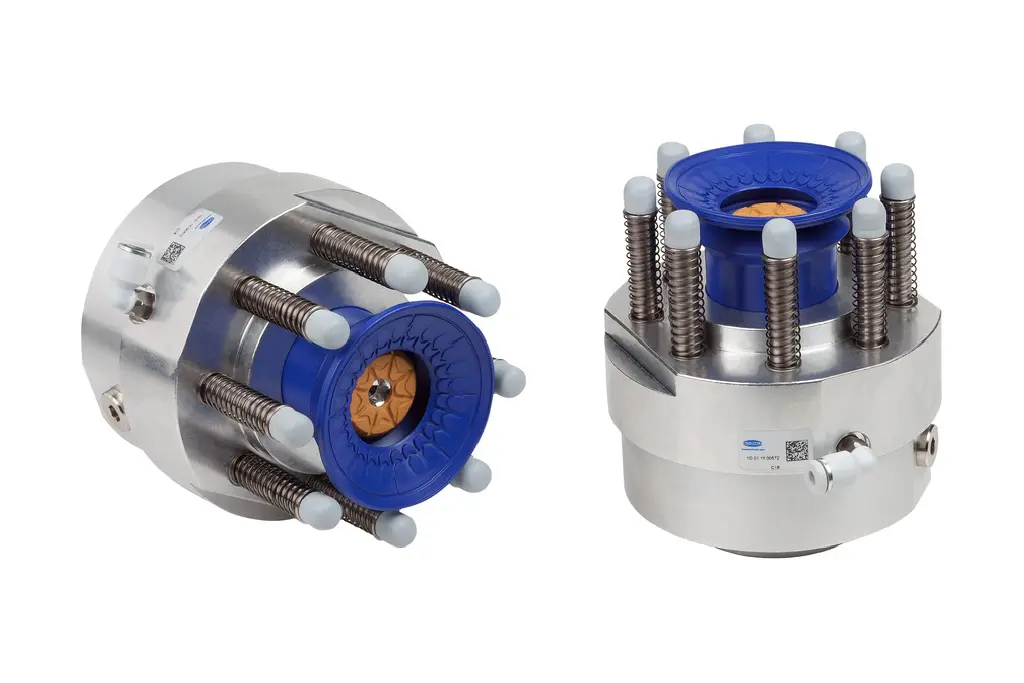

SSCB-78 93.5-107.5 ZP 60 SAB-NBR
Part no.: 10.01.15.00572
Vacuum Clamping System for automated 3D-fixation
Price
$2,562.41
excl. VAT, shipping & packagingSpecifications
| Dmk | 78 (mm) |
|---|---|
| Working area [mm] | 93.5 ... 107.5 |
| Function suction cup | Centrally fixed pins |
| Suction cup type | Bellows suction cups SAB |
| Connection | Ø60mm |
| Material | NBR |
| Material hardness [Shore A] | 60 (Shore A) |
| Material workpiece support | NBR |
| Height H1 | 117.3 (mm) |
Product family
Gripping area Ø 22 mm and 60 mm
| Outside diameter D1 | 66 – 134 mm |
|---|---|
| Dmk | 30 – 78 mm |
| Height H1 | 71.8 – 179 mm |
| Operating height EH (min.) | 60.7 – 141 mm |
| Operating height EH (max.) | 66.5 – 171 mm |
| Suction stroke Zs | 5.8 – 30 mm |
| Stroke Z | 8 – 46 mm |
| Size | 22 – 60 |
| Weight | 200 – 2609.7 g |
