Schmalz part

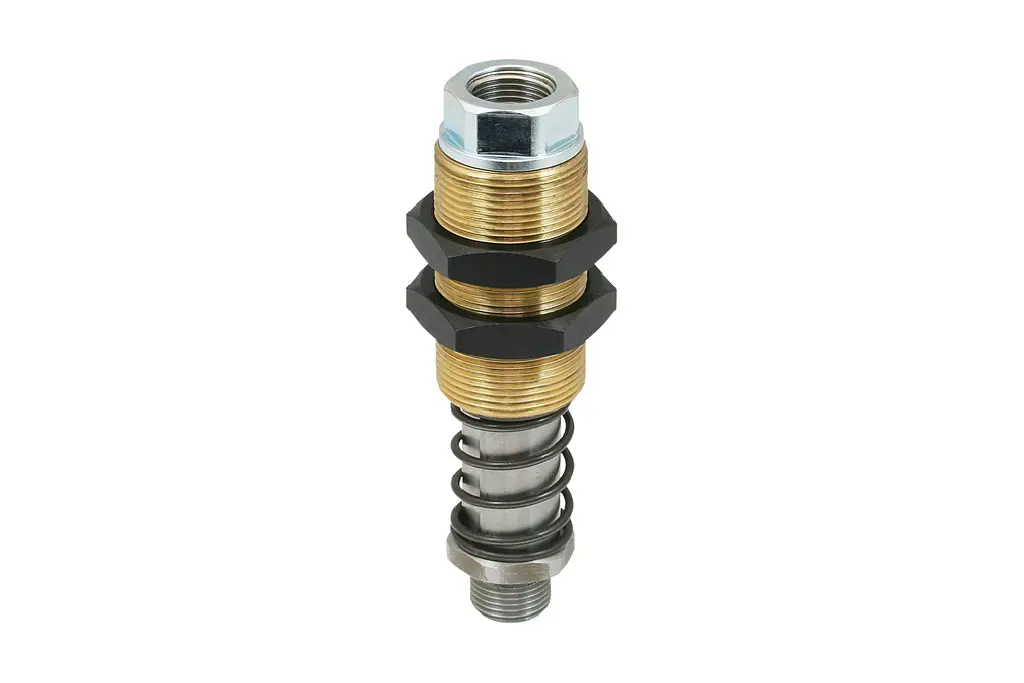

FSTE-HD G3/8-AG 25 VG
Part no.: 10.01.02.00878
Spring plunger with damping and height compensation, heavy-duty
Price
$228.87
excl. VAT, shipping & packagingSpecifications
| Suction cup connection | G3/8"-M |
|---|---|
| Product family | FSTE-HD |
| Spring stroke Z | 25 (mm) |
| Shape mounting elements | with anti-rotation guard |
| Tightening torque (max) | 50 (Nm) |
Product family
Stroke from 15 mm to 90 mm
| Thread G1 | G1/8"-F, G3/8"-F |
|---|---|
| Thread G2 | G1/8"-M, G1/4"-M, G1/2"-M, G3/8"-M |
| Thread G3 | M16x1-M, M20x1.5-M, M30x1.5-M |
| Height H | 72.5 – 189 mm |
| Height H2 | 28.5 – 124 mm |
| Thread length LG1 | 8 – 12.8 mm |
| Thread length LG2 | 7.5 – 10.5 mm |
| Thread length LG3 | 30 – 53 mm |
| Key width SW1 | 22 – 36 mm |
