Schmalz part

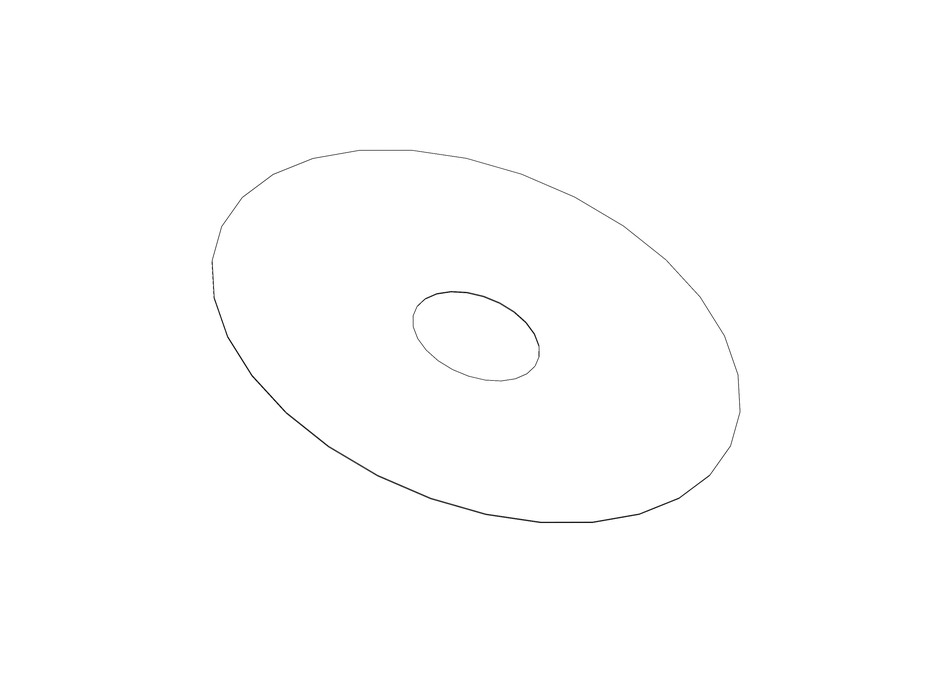

SKIRT-250-60 NK-35
Part no.: 11.01.40.00363
Skirt for vacuum suction cups for handling of porous workpieces
Price
Price on request
excl. VAT, shipping & packagingSpecifications
Detailed specifications are listed on the Schmalz product page.
Product family
Set of parts subject to wear pump
| Height H | 14 – 523 mm |
|---|---|
| Width B | 121 – 473 mm |
| Weight | 0.73 – 372 kg |
| Internal diameter d | 6 – 12 mm |
| Length L | 320 – 572 mm |
| Hole spacing X1 | 220 – 310 mm |
| Suction rate (50 Hz) | 25 – 260 m³/h |
| Suction rate (60 Hz) | 30 – 300 m³/h |
| Voltage at 60 Hz | D330 V / Y575 V ±10 %, YY230 / Y460 V ±10 % |
