Schmalz part

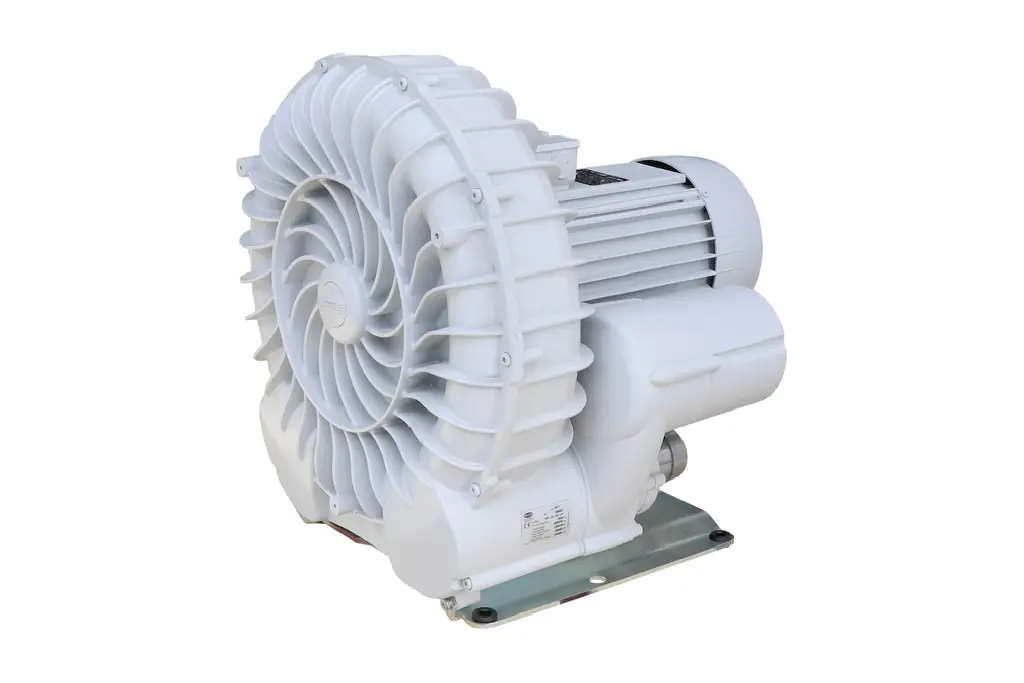

SBM-160-520-IE3-TYP1
Part no.: 11.02.05.10152
Directly driven vacuum blower for tube lifter applications
Price
Price on request
excl. VAT, shipping & packagingSpecifications
| Sound pressure level at 50 Hz | 70.5 (dB(A)) |
|---|---|
| Voltage at 50 Hz | D230 V / Y400 V ±10 % |
| Voltage at 60 Hz | D265 V / Y460 V ±10 % |
| Suction rate (50 Hz) | 160 (m³/h) |
| Suction rate (60 Hz) | 190 (m³/h) |
| Vacuum (50 Hz) | -520 (mbar) |
| Rated power at 50 Hz | 3 (kW) |
| Rated power at 60 Hz | 3.6 (kW) |
| Version | IE3:EU/CN/IND |
| Approval | UL/CSA |
| Weight | 43 (kg) |
| Category | Electrical vacuum generation |
Product family
Set of parts subject to wear pump
| Height H | 14 – 523 mm |
|---|---|
| Width B | 121 – 473 mm |
| Weight | 0.73 – 372 kg |
| Internal diameter d | 6 – 12 mm |
| Length L | 320 – 572 mm |
| Hole spacing X1 | 220 – 310 mm |
| Suction rate (50 Hz) | 25 – 260 m³/h |
| Suction rate (60 Hz) | 30 – 300 m³/h |
| Voltage at 60 Hz | D330 V / Y575 V ±10 %, YY230 / Y460 V ±10 % |
