Schmalz part

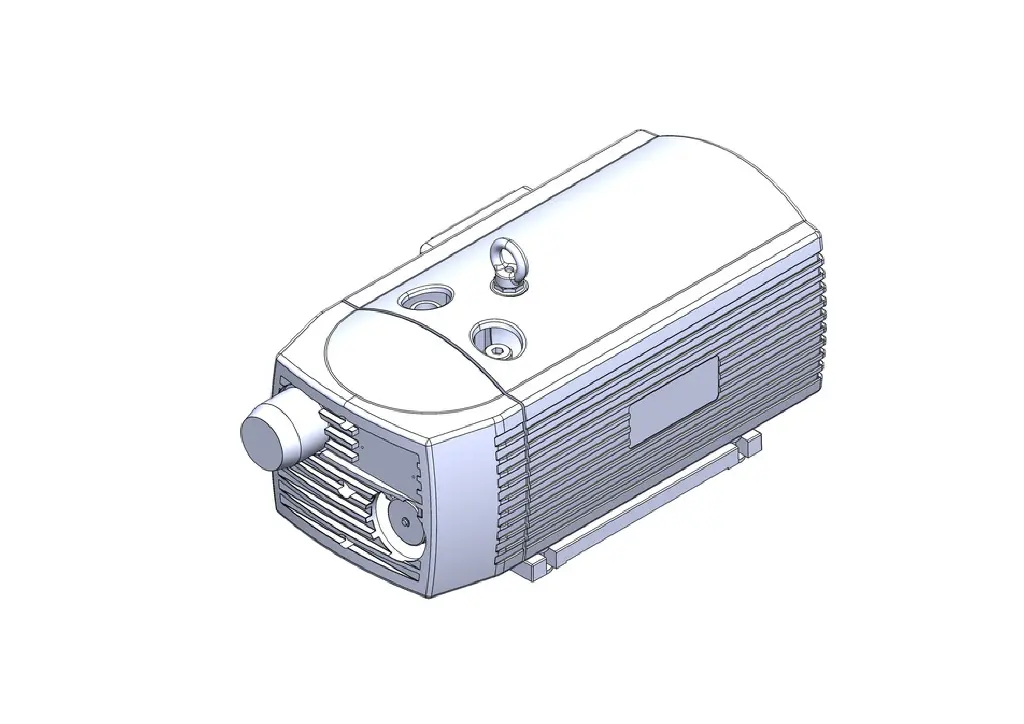

EVE-TR 16 AC3
Part no.: 10.03.01.00126
Oil-free pump with constant suction rate, robust, requires little maintenance
Price
$4,361.33
excl. VAT, shipping & packagingSpecifications
| Current type | Three phase A.C. |
|---|---|
| Sound pressure level at 50 Hz | 61 (dB(A)) |
| Voltage at 50 Hz | D175 - 260 V / Y300 - 450 V |
| Voltage 60 Hz | S013 |
| Voltage at 60 Hz | 200 - 300 V or 350 - 520 V |
| Suction rate (50 Hz) | 16 (m³/h) |
| Suction rate (60 Hz) | 19 (m³/h) |
| Vacuum (50 Hz) | -850 (mbar) |
| Rated power at 50 Hz | 0.55 (kW) |
| Rated power at 60 Hz | 0.7 (kW) |
| Approval | UL/CSA |
| Weight | 22.5 (kg) |
