Schmalz part

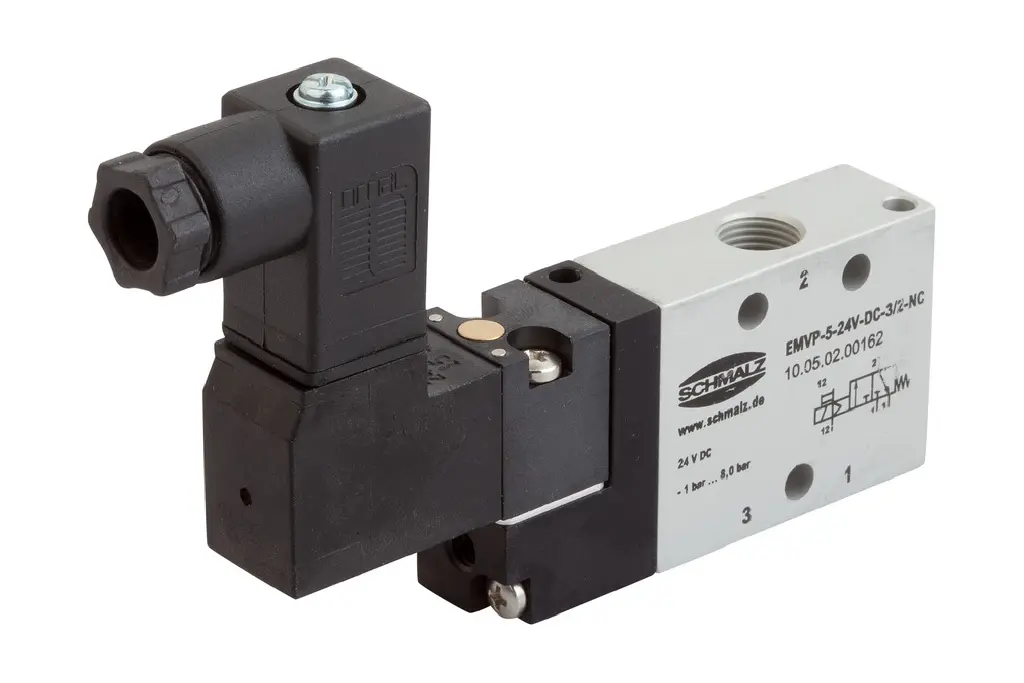

EMVP 5 24V-DC 3/2 NC
Part no.: 10.05.02.00162
Solenoid valve EMVP for vacuum, pneumatic pilot control
Price
$284.57
excl. VAT, shipping & packagingSpecifications
| Nominal size | 5 (mm) |
|---|---|
| Nominal flow at 0.1 bar | 3.8 (m³/h) |
| Voltage DC | 24 V - DC |
| Function valve | 3/2 multiway valve |
| Control valve | Normally closed |
| Connection thread | G1/8"-F |
| Pressure range (operating pressure) [bar] | -0.95 ... 0.00 bar |
| Weight | 0.11 (kg) |
Product family
Solenoid valves, which are controlled via electrical switch signals, are used for the control of compressed air or vacuum. These valves can be controlled directly as well as with pneumatic pilot operation.
| Thread G1 | G1/4"-M, G1/2"-M, G1"-M, G1-1/4"-M, G3/4"-M … |
|---|---|
| Thread length LG1 | 5 – 19.5 mm |
| Length L | 19 – 47 mm |
| Key width SW1 | 8 – 46 mm |
| Outside diameter D | 63 – 80 mm |
| Length L1 | 28 – 58 mm |
| Height H | 16.9 – 19.5 mm |
| Width B | 9.5 mm |
| Height H2 | 9.9 mm |
