Schmalz part

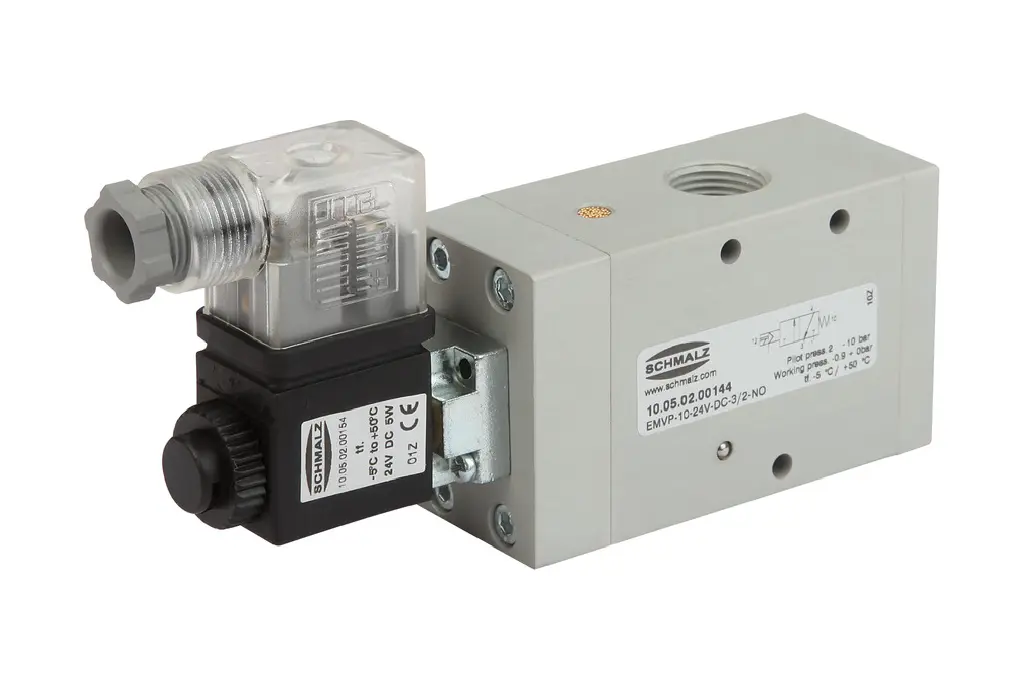

EMVP 10 24V-DC 3/2 NO/NC
Part no.: 10.05.02.00144
Solenoid valve EMVP for vacuum, pneumatic pilot control
Price
$629.87
excl. VAT, shipping & packagingSpecifications
| Nominal size | 10 (mm) |
|---|---|
| Nominal flow at 0.1 bar | 19.3 (m³/h) |
| Voltage DC | 24 V - DC |
| Function valve | 3/2 multiway valve |
| Control valve | Optional NO / NC |
| Connection thread | G3/8"-F |
| Pressure range (operating pressure) [bar] | -0.95 ... 5.00 bar |
| Weight | 0.42 (kg) |
Product family
Nominal diameter from 5 mm to 50 mm
| Nominal flow at 0.1 bar | 3.8 – 5166.7 m³/h |
|---|---|
| Width B | 15 – 114 mm |
| Thread G1 | G2"-F, G1-1/4"-F, G3/8"-F, G1/2"-F, G3/4"-F … |
| Thread G2 | G2"-F, G1-1/4"-F, G3/8"-F, G1/2"-F, G3/4"-F … |
| Thread G4 | G1/8"-F, M5-F, G1/8-IG |
| Height H | 88.4 – 189.5 mm |
| Length L | 32 – 225 mm |
| Length L1 | 37 – 260 mm |
| Nominal size | 5 – 50 mm |
