Schmalz part

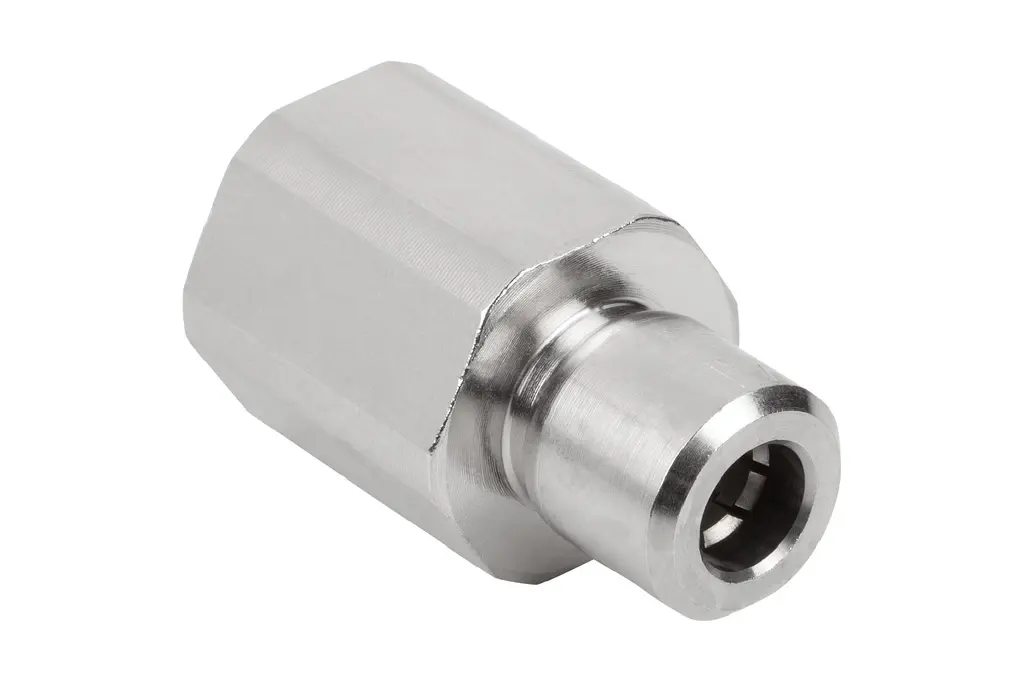

STVI-GE G1/4-IG 6
Part no.: 10.08.02.00153
Push-in Fitting, straight
Price
Price on request
excl. VAT, shipping & packagingSpecifications
| Thread G1 | G1/4"-F |
|---|---|
| Outer hose diameter | 6 (mm) |
| Material | Brass |
| Operating temperature | -20 ... 80 °C |
| Outside diameter D | 11.5 (mm) |
| Length L | 30.5 (mm) |
Product family
Hose outer diameter from 4 mm to 14 mm
| Design hose type | Hose D = 4 d = 2, 4-2, Hose D = 6 d = 4, 6-4, Hose D = 8 d = 6 … |
|---|---|
| Length L | 11.8 – 72 mm |
| Pressure range (operating pressure) [bar] | 1.00 ... 15.00 bar, 0.95 ... 15.00 bar, -1.00 ... 15.00 bar, -0.95 ... 15.00 bar, bar … |
| Operating temperature | -20 ... 80 °C, -10 ... 70 °C, °C, 0 ... 60 °C, -20 ... 120 °C … |
| Weight | 0.43 – 141.7 g |
| Product family | STV |
| Internal diameter d | 4 – 14 mm |
| Material | Brass, Nickel plated, Plastics |
| Thread G1 | G1/8"-F, G1/4"-F, M5-M, G1/4"-M, G1/8"-M … |
