Schmalz part

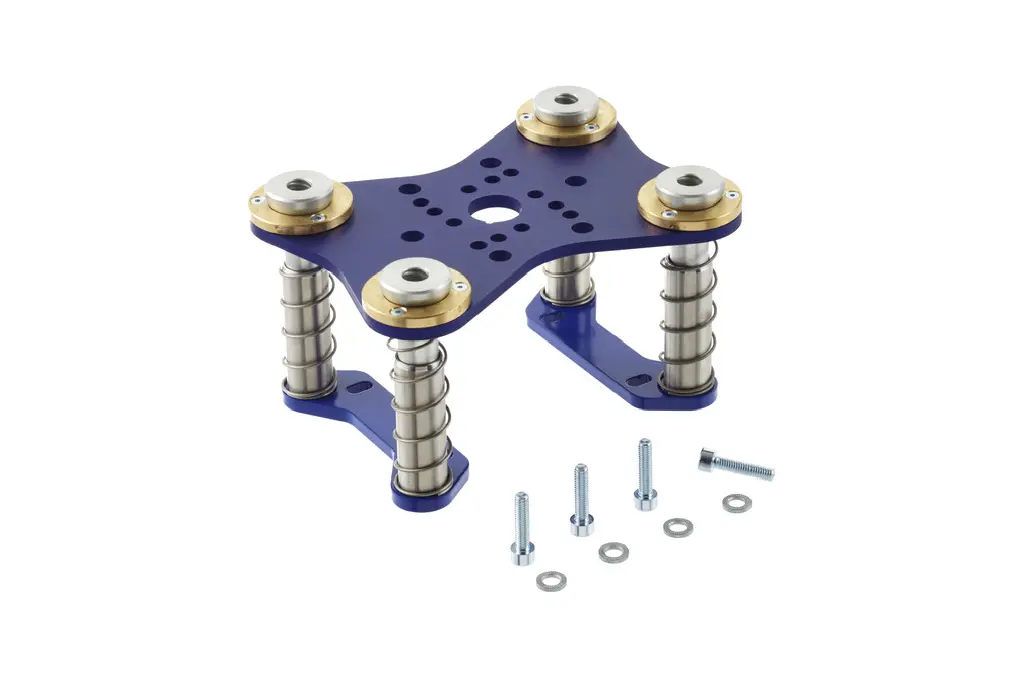

MOD-FLAN 191.5x191.5 PSSG FL-4
Part no.: 10.01.54.00108
Flange module
Price
$1,389.33
excl. VAT, shipping & packagingSpecifications
| Length L | 191.5 (mm) |
|---|---|
| Width B | 191.5 (mm) |
| Height H | 90.5 (mm) |
| Utilization design | PSSG |
| Shape | Floating |
| Lift capacity | 50 (kg) |
| Spring rate | 1.576 (N/mm) |
Product family
Sack gripper with very low weight for the automated handling of bags.
| Length L | 27 – 405 mm |
|---|---|
| Width B | 47 – 305 mm |
| Height H | 1.5 – 90.5 mm |
| Utilization design | PSSG, FLGR |
| Size | 2 – 4 |
| Material | Steel |
| Thread G1 | M6-M, M5-M |
| Outside diameter D | 16.5 – 60.5 mm |
| Weight | 0.71 – 170 g |
