Schmalz part

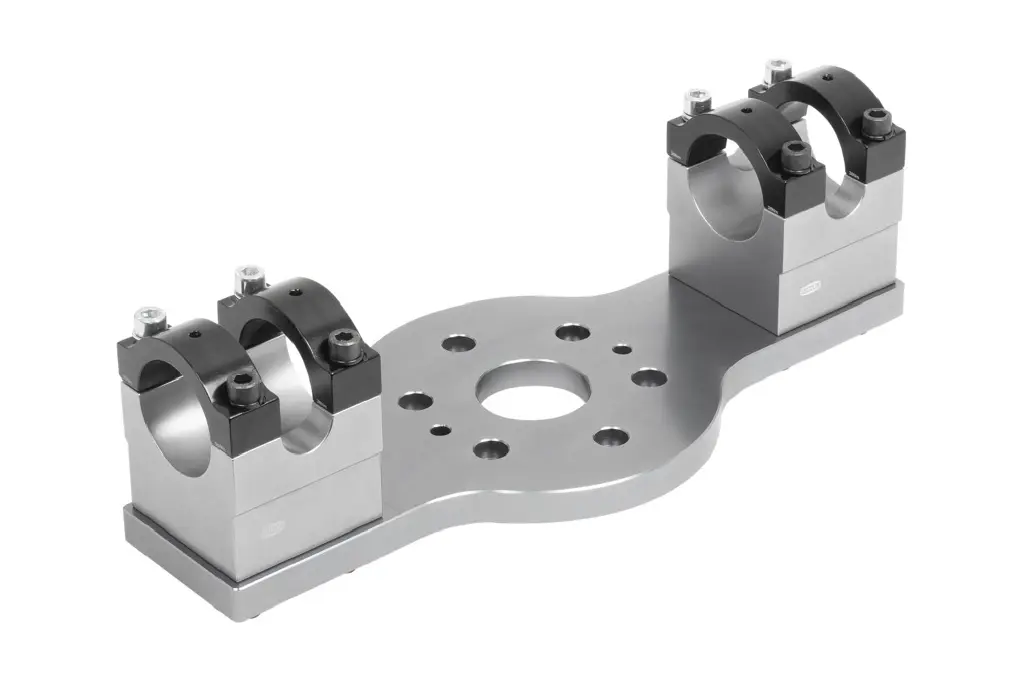

SXT-RF-CL-160-60
Part no.: 10.07.13.00005
Robot-Flange with tube clamps for round toolings
Price
$1,173.50
excl. VAT, shipping & packagingSpecifications
| Length L | 460 (mm) |
|---|---|
| Material | Aluminum |
| Dmk | 160 (mm) |
| Utilization design | Pipe 1 x 60 |
Product family
For pipe diameters of 40 and 60 mm
| Outside diameter D2 | 100 mm |
|---|---|
| Dmk | 125 – 160 mm |
| Internal diameter d | 40 – 60 mm |
| Internal diameter d1 | 11.5 mm |
| d2 | 10 mm |
| Height H1 | 111 – 135 mm |
| Height H2 | 77 – 93 mm |
| Height H3 | 3 mm |
| Length L | 460 mm |
