Schmalz part

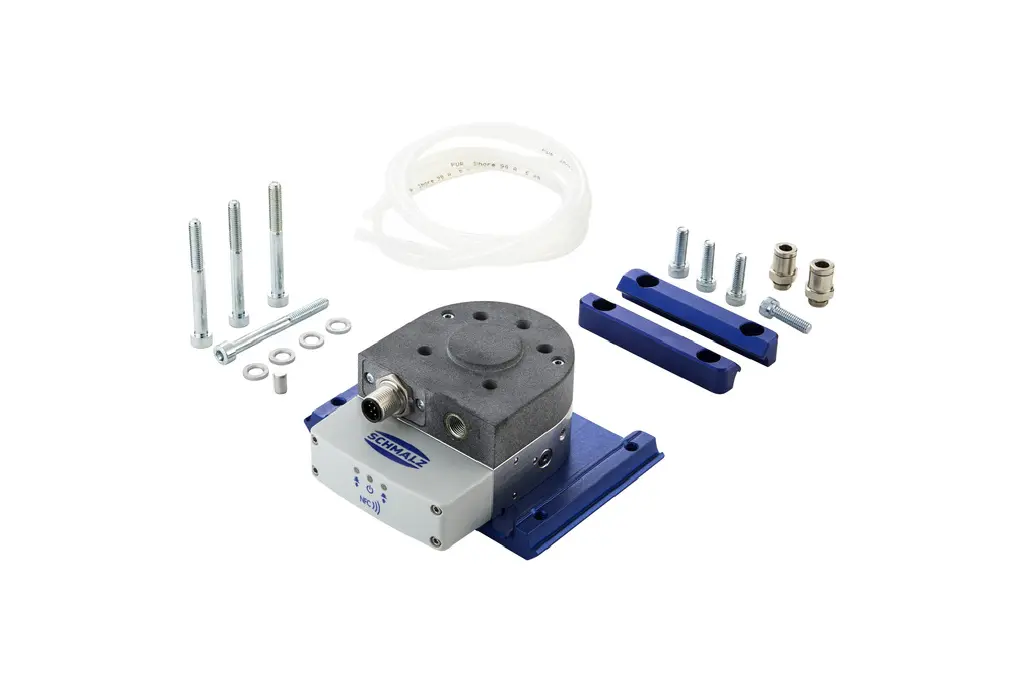

RECBi 24V-DC NO PXT-2 1C M12-8
Part no.: 10.02.03.00469
Pneumatic end-of-arm vacuum generator for lightweight and industrial robots
Price
$1,842.16
excl. VAT, shipping & packagingSpecifications
| Voltage DC | 24 V - DC |
|---|---|
| Control valve | Normally open |
| Rated power | 1 (W) |
| Rated current | 0 (A) |
| Additional function area gripper | PXT (2 beam) |
| Utilization | DIO / IO-Link |
| Dmk | 50 (mm) |
| Electrical connection | Male connect M12, 8 pol |
Product family
Suction rate up to 52.5 l/min
| Width B | 75 mm |
|---|---|
| Internal diameter d1 | 6.4 mm |
| Outside diameter D2 | 31.5 mm |
| Dmk | 50 mm |
| Thread G3 | G1/8"-F |
| Height H | 46 – 68 mm |
| Height H1 | 54 – 68 mm |
| Height H2 | 25 mm |
| Height H3 | 5.1 – 19.2 mm |
