Schmalz part

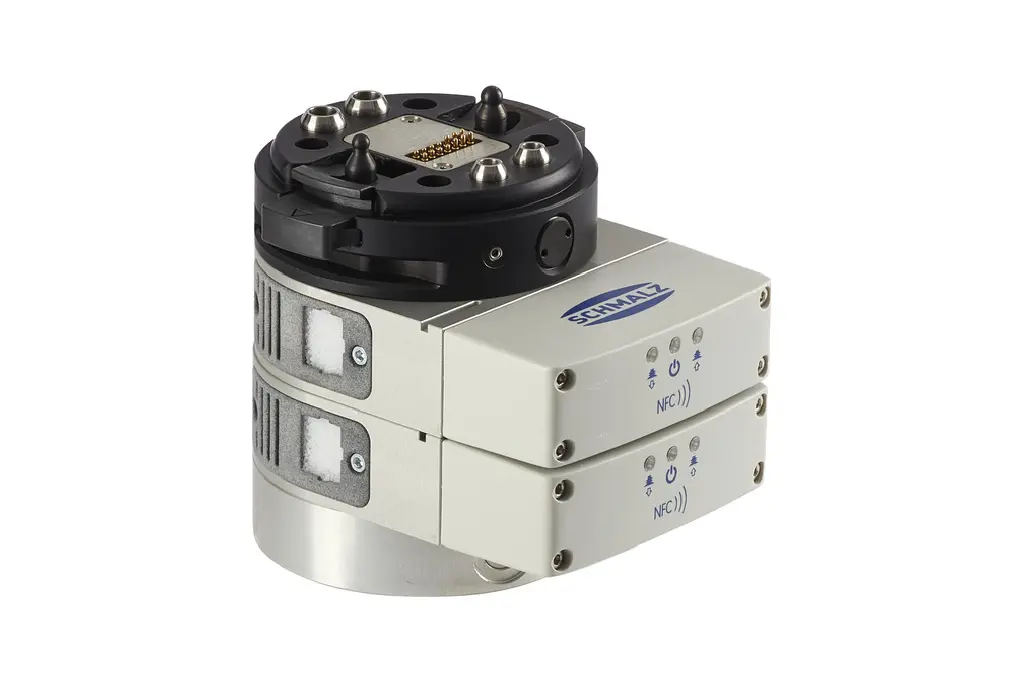

RECBi 24V-DC NC UNI 2C MATCH
Part no.: 10.02.03.00403
Pneumatic Vacuum Generator for End-of-Arm Ecosystem MATCH
Price
$4,083.48
excl. VAT, shipping & packagingSpecifications
| Voltage DC | 24 V - DC |
|---|---|
| Control valve | Normally closed |
| Additional function area gripper | Universal connection |
| Utilization | IO-Link |
| Version | Quick-change system MATCH |
Product family
Suction rate 52.5 l/min · Lift capacity up to 25 kg
| Width B | 75 mm |
|---|---|
| Outside diameter D | 75 – 75.5 mm |
| Outside diameter D1 | 86.2 mm |
| Height H | 43 – 87 mm |
| Height H1 | 67.5 – 99.5 mm |
| Height H2 | 25 mm |
| Height H3 | 12 – 19 mm |
| Length L | 107.4 – 156 mm |
| Length L2 | 69.9 – 70 mm |
