Schmalz part

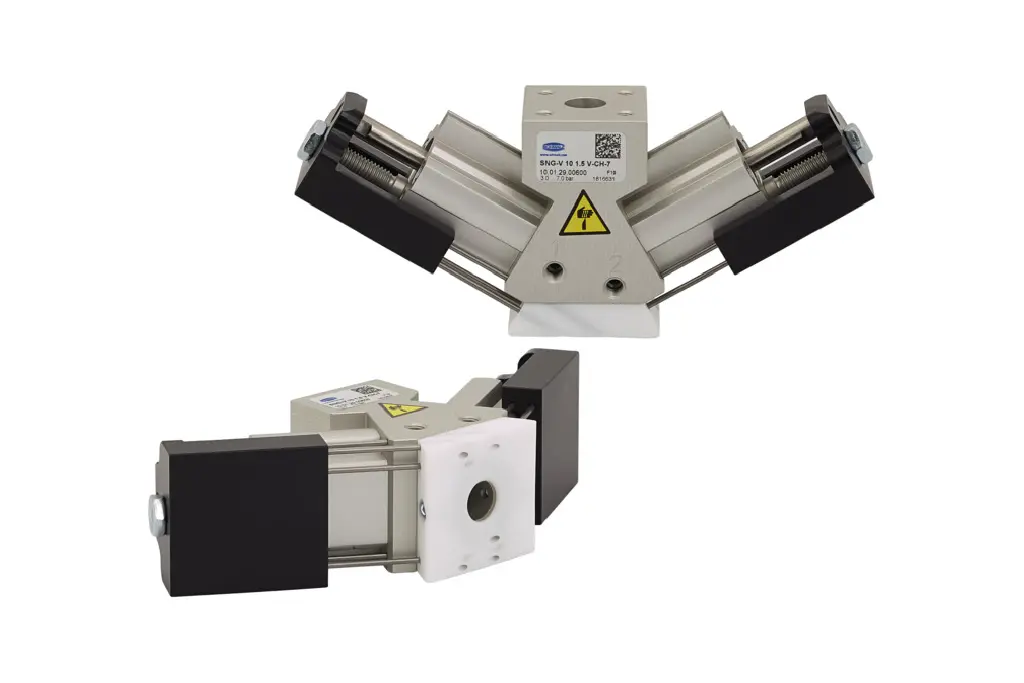

SNG-V 10 1.5 V-CH-7 10.5
Part no.: 10.01.29.00600
Needle gripper "SNG-V", particularly robust version
Price
$1,858.89
excl. VAT, shipping & packagingSpecifications
| Number of needles | 10 |
|---|---|
| Needle diameter | 1.5 (mm) |
| Additional function | Var. stroke, center hole |
| Needle stroke Z(NA) | 7 (mm) |
| Pressure range (operating pressure) [bar] | 3.0 ... 7.0 bar |
Product family
Needle stroke 0 mm to 25 mm (variable)
| Width B | 15 – 48 mm |
|---|---|
| Thread G1 | M5-F |
| Thread G3 | M4-F, M5-F |
| Thread G4 | M4-F, M5-F |
| Height H | 39.8 – 87.2 mm |
| Length L | 115 – 237 mm |
| Insertion angle W(E) | 30 – 45 ° |
| Hole spacing X1 | 20 – 29 mm |
| Needle stroke Z(NA) | 5 – 25 mm |
