Schmalz part

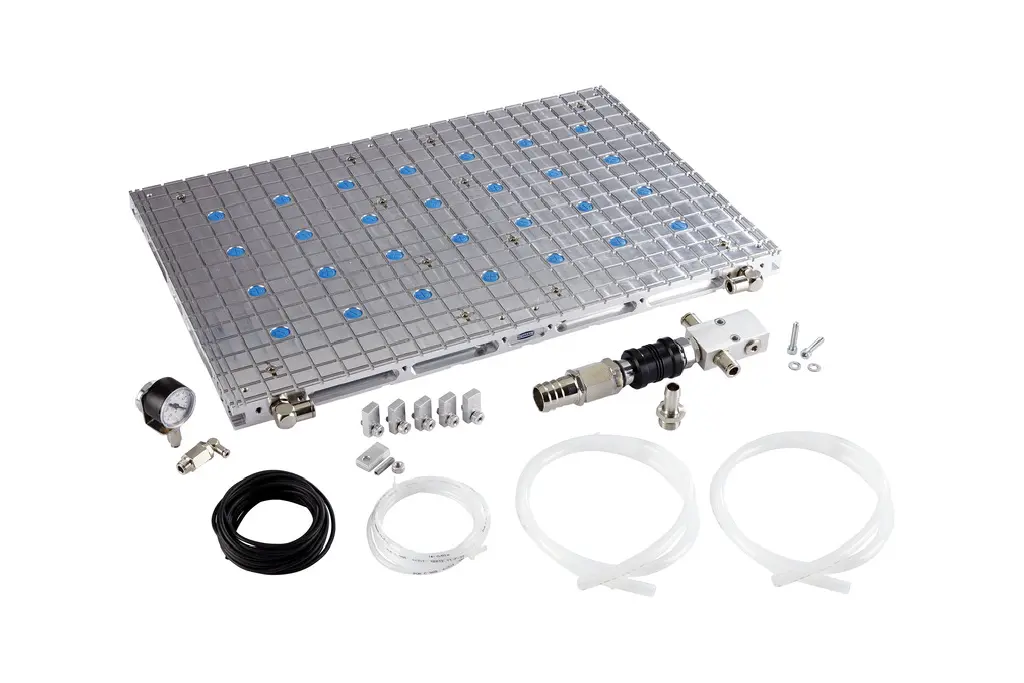

MPL 400x300x28 25x25 3x3 RI
Part no.: 10.01.27.01751
Matrix-Plate for metalworking
Price
$6,076.47
excl. VAT, shipping & packagingSpecifications
| Length L | 400 (mm) |
|---|---|
| Width B | 300 (mm) |
| Grid | 25x25 |
| Slot | 3 x 3 mm mm |
| with | Friction pads |
Product family
The modular clamping system MPL-ISST-SFM offers numerous options for clamping a wide variety of components by vacuum, making it a useful addition to any CNC machining center.
| Height H | 12 – 30 mm |
|---|---|
| Width B | 15 – 81 mm |
| Length L | 8 – 81 mm |
| Outside diameter D | 18 mm |
