Schmalz part

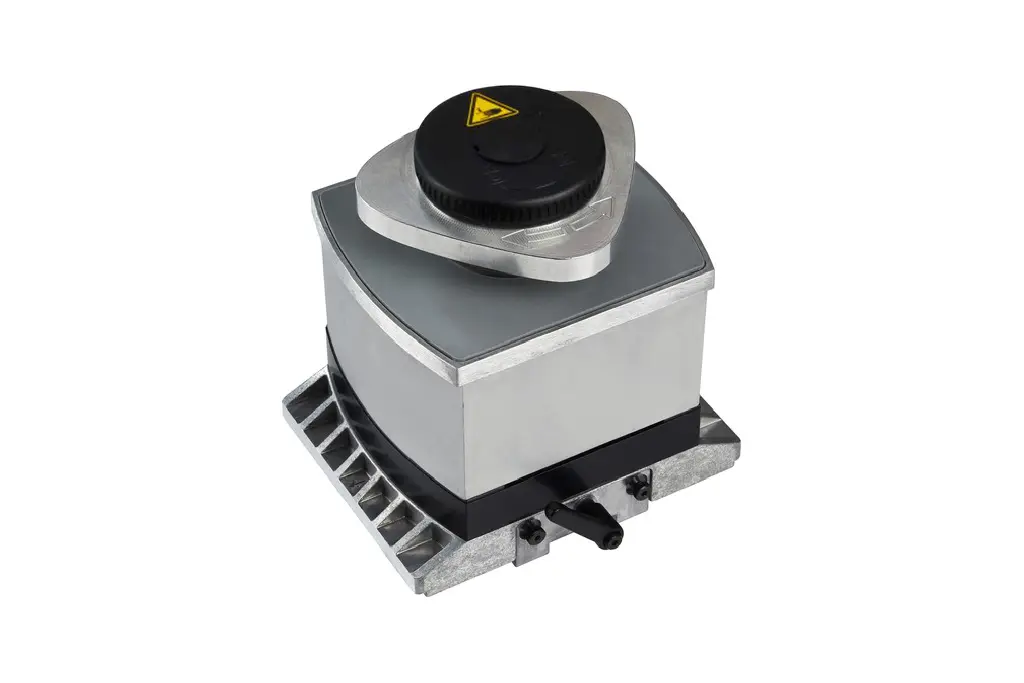

VCMC-K1-QUICK 170x135x125 10-100
Part no.: 10.01.12.04744
Mechanical clamp for narrow and frame parts, 1-circuit console
Price
$2,169.18
excl. VAT, shipping & packagingSpecifications
| Shape | QUICK |
|---|---|
| Dimension (LxW) | 170x135 |
| Height H | 125 (mm) |
| Stroke Z | 10 (mm) |
| Clamping range [mm] | 10.0 ... 100.0 mm |
| Additional function vacuum block | Toolless height adjustment |
Product family
Clamping range 10 mm to 100 mm · With quick adjustment
| Width B | 133 – 133.3 mm |
|---|---|
| Outside diameter D1 | 56 mm |
| Height H | 50 – 125 mm |
| Height H1 | 167.5 – 258.5 mm |
| Height H2 | 30 mm |
| Length L | 170 – 171 mm |
| Hole spacing X1 | 66.5 mm |
| Hole spacing X2 | 44 mm |
| Clamping range [mm] | 10.0 ... 100.0 mm, 15.0 ... 85.0 mm |
