Schmalz part

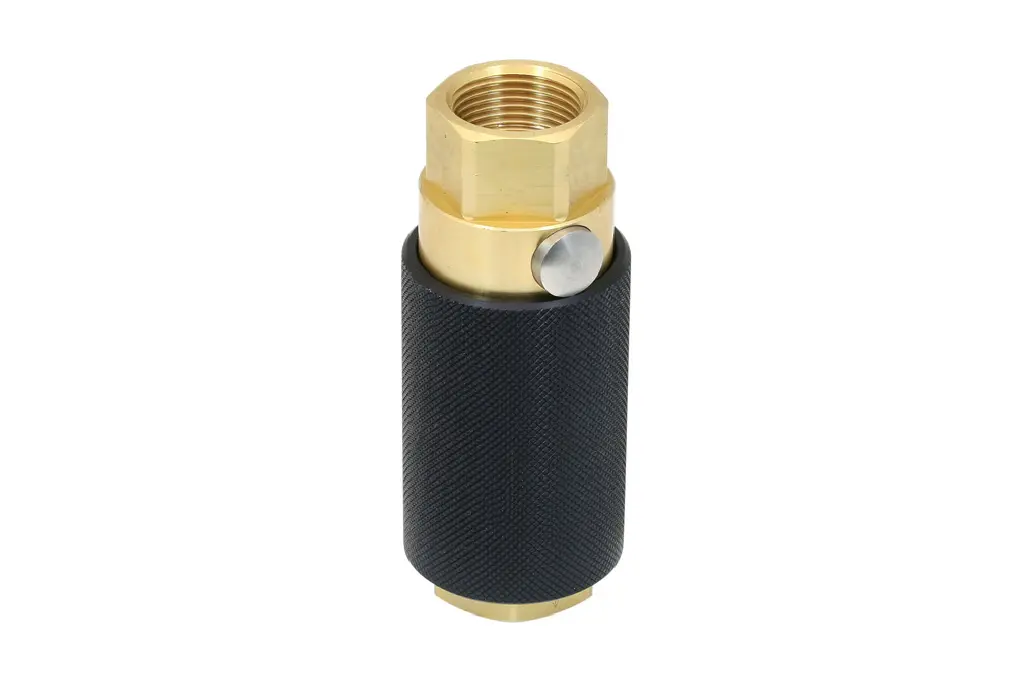

HSV 24 3/2 G3/4-IG S
Part no.: 10.05.07.00038
Manual slide valve for manual switching of vacuum and compressed air
Price
$342.10
excl. VAT, shipping & packagingSpecifications
| Nominal size | 24 (mm) |
|---|---|
| Function valve | 3/2 multiway valve |
| Thread G1 | G3/4"-F |
| Pressure range (operating pressure) [bar] | -0.95 ... 10.00 bar |
| with | Barrier |
Product family
Nominal diameter from 7 mm to 24 mm
| Nominal flow rate | 6 – 833.3 m³/h |
|---|---|
| Outside diameter D1 | 30 – 45 mm |
| Thread G1 | G3/8"-F, G1/4"-F, G3/4"-F, G1/2"-F |
| Length L | 58 – 110 mm |
| Thread length LG1 | 12 – 16 mm |
| Key width SW1 | 19 – 32 mm |
| Nominal size | 7 – 24 mm |
| Weight | 0.097 – 0.513 kg |
| Product family | HSV |
