Schmalz part

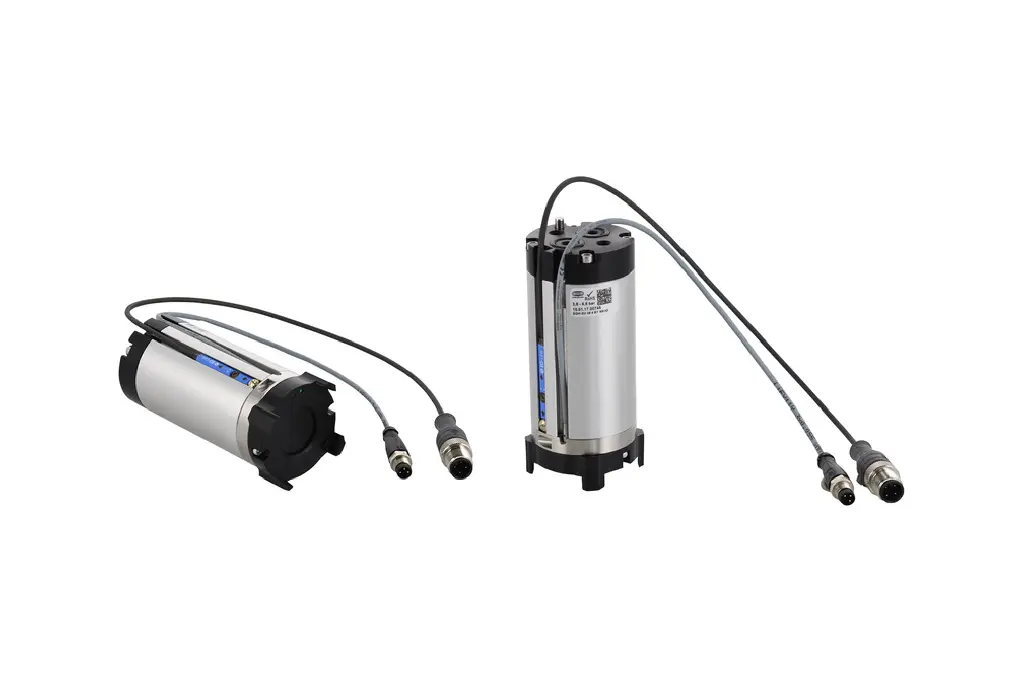

SGM-SV 46 4 BY M5-IG PNP
Part no.: 10.01.17.00748
Magnetic gripper (prepared f sensor)
Price
$1,091.82
excl. VAT, shipping & packagingSpecifications
| Size | 46 |
|---|---|
| Guide pin | 4 |
| Socket | M5-F |
| Pressure range (operating pressure) [bar] | 3.5 ... 6.0 bar |
| Additional function | Sensor PNP |
| Suction cup type | Battery grippers |
Product family
Gripping surface (Ø): 46 mm
| Outside diameter D | 52 mm |
|---|---|
| Internal diameter d | 46 mm |
| Thread G1 | M5-F |
| Thread G2 | M6-F |
| Height H | 100 mm |
| Hole spacing X2 | 25 mm |
| Hole spacing X3 | 3.5 mm |
| Hole spacing Y1 | 18 mm |
| Hole spacing Y3 | 6.5 mm |
