Schmalz part

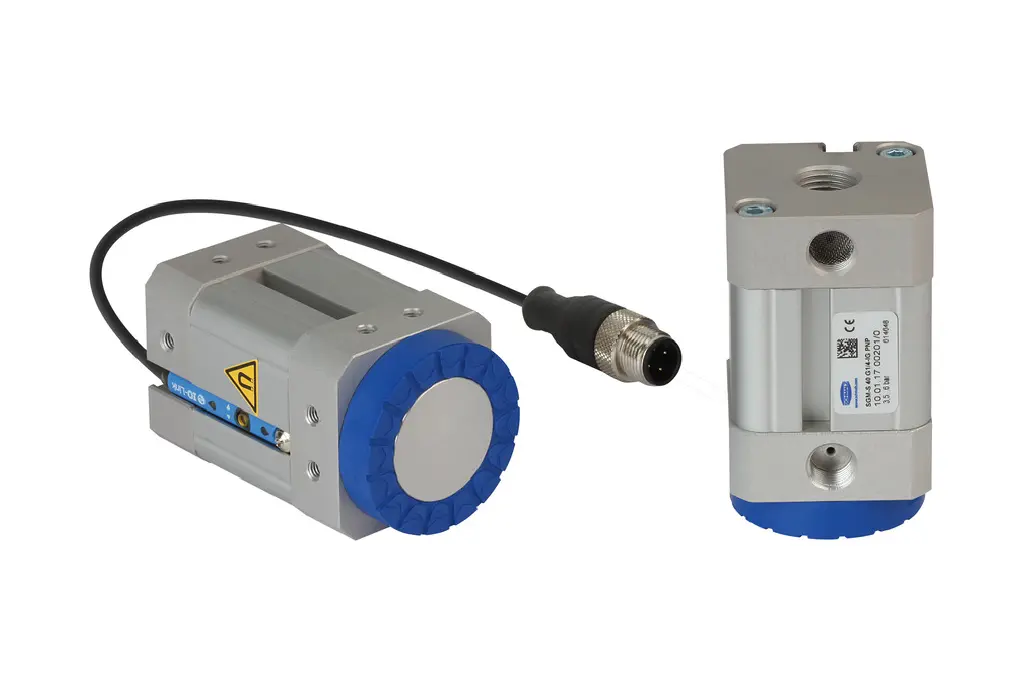

SGM-S 40 G1/4-IG PNP
Part no.: 10.01.17.00201
Magnetic gripper for handling metal sheets with holes
Price
$868.47
excl. VAT, shipping & packagingSpecifications
| Size | 40 |
|---|---|
| Socket | G1/4"-F |
| Holding force max. with friction ring | 100 (N) |
| Pressure range (operating pressure) [bar] | 3.5 ... 6.0 bar |
| Additional function | Sensor PNP |
| Electrical connection | Male connect M12, 4 pol |
Product family
Suction area (Ø) from 30 mm to 70 mm
| Width B | 30.1 – 68.75 mm |
|---|---|
| Outside diameter D | 29.5 – 68 mm |
| Thread G1 | G1/4"-F, G1/8"-F |
| Thread G2 | G1/8"-F |
| Thread G4 | M4-F, M5-F |
| Height H | 70.2 – 80.2 mm |
| Thread length LG1 | 7 – 11 mm |
| Thread length LG2 | 6 mm |
| Thread length LG4 | 5 – 8 mm |
